1000kg Coal Wood Chip Bagasse Fired Steam Boiler for sale in
Philippines

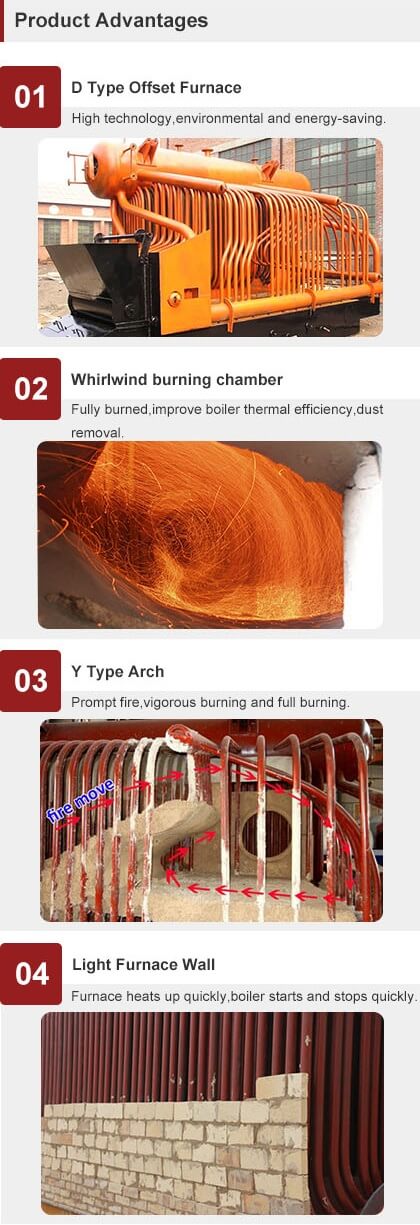

SZL Bagasse fired steam boiler has a double-drum offset hearth
(D-type layout), great apply for biomass fuel, environmental
protection and energy conservation, and is a key promoted product
of national energy-saving projects.
1. Boiler Applied fuel:biomass pellet,wood pellet, wood chip, rice
huskrice husk,straw, cashew, sawdust, paddy ,peanut,palm oil kernel
shell,cashew nut and all other kinds of solid fuel.
2. Boiler Rated capacity: packaged 1 to 8 t/h, assembled 10-20 t/h
3. Boiler Model: SZL
4. Boiler Structure: automatic chain grate, water tube, 3-pass
boiler, double drum
5. Boiler efficiency: 83-86%
6. Boiler Output: steam
7. Boiler Rated steam pressure:1.0Mpa(10bar),
1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar).
8. Boiler Rated steam temperature:184°C, 194°C,204°C,225°C
Bagasse fired steam boiler Parameter
| Model | Rated capacity | Rated pressure | Rated Feed water temperature | Rated steam temperature | Active grate area | Boiler heating area | Boiler efficiency |
| t/h | Mpa | ℃ | ℃ | ㎡ | ㎡ | % |
| SZH2-1.25/2.5-AII | 2 | 1.25/2.5 | 20 | 194/226 | 2.78 | 69.5 | 81 |
| SZH4-1.25/2.5-AII | 4 | 1.25/2.5 | 20 | 194/226 | 4.5 | 119.2 | 81 |
| SZL2-1.25/2.5-AII | 2 | 1.25/2.5 | 20 | 194/226 | 3.1 | 64.6 | 81.6 |
| SZL4-1.25/2.5-AII | 4 | 1.25/2.5 | 20 | 194/226 | 4.6 | 115.3 | 81.6 |
| SZL6-1.25/2.5-AII | 6 | 1.25/2.5 | 20 | 194/226 | 7.3 | 136.3 | 81.6 |
| SZL8-1.25/2.5-AII | 8 | 1.25/2.5 | 20 | 194/226 | 10.4 | 173 | 81.8 |
| SZL10-1.25/2.5-AII | 10 | 1.25/2.5 | 20 | 194/226 | 11.8 | 233 | 82 |
| SZL15-1.25/2.5-AII | 15 | 1.25/2.5 | 20 | 194/226 | 17.7 | 307.3 | 82.3 |
| SZL20-1.25/2.5-AII | 20 | 1.25/2.5 | 20 | 194/226 | 20.8 | 725.2 | 82.3 |
Remarks: Customized design service is available according to your
special requirements.
Our service
1. Consultation service: Experienced technicians guidance is
available on the phone, and on the internet.
2. Installation service: One or more engineers will be dispatched
to the installation site to help install the customers’ boilers.
3. Training service: We also provide necessary training about
boiler operation and daily maintenance to local workers.
4. Warm service: Based on customers’ request and budget, our
experts make efficient, reliable solutions, and we produce strictly
following customers’ order. Every customer has the chance to visit
our workshops before placing the order.
Bagasse fired steam boiler typical projects
Bagasse fired steam boiler delievery
1.The boiler main unit and the large auxiliary equipment are naked,
and other precision instruments or small auxiliary equipment are
packed in wooden boxes.
2.According to the tonnage of the boiler,we use 20-foot
cabinet,40-foot cabinet,20 frame or 40 frame box for shipment.
3. All goods will be professionally reinforced after being loaded
into the container.
4. We have a stable and cooperative freight company that can ensure
the safety of the goods and ensure low transportation costs.
