1 ton Gas Steam Boiler Model WNS1-1.0-Q WNS1-1.0-Y WNS1-1.0-Y(Q)
Gas Steam Boiler Product Introduction
WNS Gas Steam Boiler offered by us are designed and manufactured to
deliver optimum functionality in the given environment. Backed by
cutting edge features and special designs, these fully automatic
systems provide complete ease of operations and maintenance.
Package Type, Fully Automatic, three pass & water tube design
electric steam boilers. These industrial steam boilers are designed
to efficiently meet the demands of instantaneous steam. For
achieving perfect combustion, it includes precisely designed smoke
passages & combustion chambers.
Gas Steam Boiler Product Parameter
| Boiler model | Rated capacity | Rated pressure | Rated Steam temp. | Fuel consumption | Thermal efficiency | Weight | Dimensions |
| Light oil | Heavy oil |
| t/h | Mpa | ℃ | kg/h | kg/h | % | ton | mm |
| WNS1-1.0-Y(Q) | 1 | 1 | 184 | 65.5 | 67.3 | 91 | 4.3 | 3561×1690×1910 |
| WNS 2-1.25- Y(Q) | 2 | 1.25 | 194 | 129.6 | 132.2 | 92 | 7.2 | 4111×1950×2199 |
| WNS3-1.25-Y(Q) | 3 | 1.25 | 194 | 192 | 195 | 92.1 | 8 | 4330×2248×2564 |
| WNS4-1.25- Y(Q) | 4 | 1.25 | 194 | 256 | 261.9 | 93 | 9.6 | 4732×2150×2448 |
| WNS5-1.25- Y(Q) | 5 | 1.25 | 194 | 318 | 322 | 93 | 12.5 | 5970×2360×2796 |
| WNS6-1.25- Y(Q) | 6 | 1.25 | 194 | 380 | 390.6 | 93.2 | 16.5 | 5500×2600×2990 |
| WNS8-1.25- Y(Q) | 8 | 1.25 | 194 | 503 | 517 | 93.5 | 24.8 | 6450×2800×3200 |
| WNS10-1.25- Y(Q) | 10 | 1.25 | 194 | 628 | 643 | 93.5 | 26.8 | 6800×2900×3394 |
| WNS15-1.25- Y(Q) | 15 | 1.25 | 194 | 940 | 965 | 93.5 | 38 | 7150×3200×3540 |
| WNS20-1.25- Y(Q) | 20 | 1.25 | 194 | 1250 | 1301 | 93.5 | 55 | 8200×3400×3826 |
The listed technical parameters are for reference only and can be
designed according to different requirements of users.
Gas Steam Boiler Product Advantages
1. High effiency(exceed 92%) and energy saving(save gas
3-5m3/h;save oil 3-5kg/h).
(1) Whole adopt corrugated tubes,strengthening heat transfer and
eliminating welding stress. Other companies also use corrugated
tubes, but we adopt the latest professor “Li Zhiguang”(a very
famous boiler expert in China)technoly,the depth of the screw
thread and spacing between two screw threads are rationally
designed.
2. Enough steam output and high quality steam.
(1) Our boiler design big size water volume,the steam output is
stable and steam quality is good.
(2) Design special steam water separator,reduce steam humidity and
improve steam quality.
3. Safe and reliable.
(1) Design tension bars,increasing the tube plate strength,
preventing cracking.
(2) Explosion proof door design,prevent explosion, reduce the
damage to the boiler, improve the safety of boiler.
(3) Two water level gauges and two Spring Safety Valve, Backup
protection, safe and reliable.
4. Intelligent and fully automatic.
(1) Adopt world famous brand burner,including baltur, riello from
italy, weishaupt,hofat from Germany,Olin from Finland, etc.
(2) Flow type intelligent water treatment equipment,automatic
restore and microcomputer operation.
5. Easy inspection and maintenance.
(1) Double door design , detachable front flue box and rear flue
box, and manholes and hand holes.
(2) Integrated wiring device, so that wire-controlled connection is
more convenient and easier for maintenance.After installation, the
boiler looks beautiful.

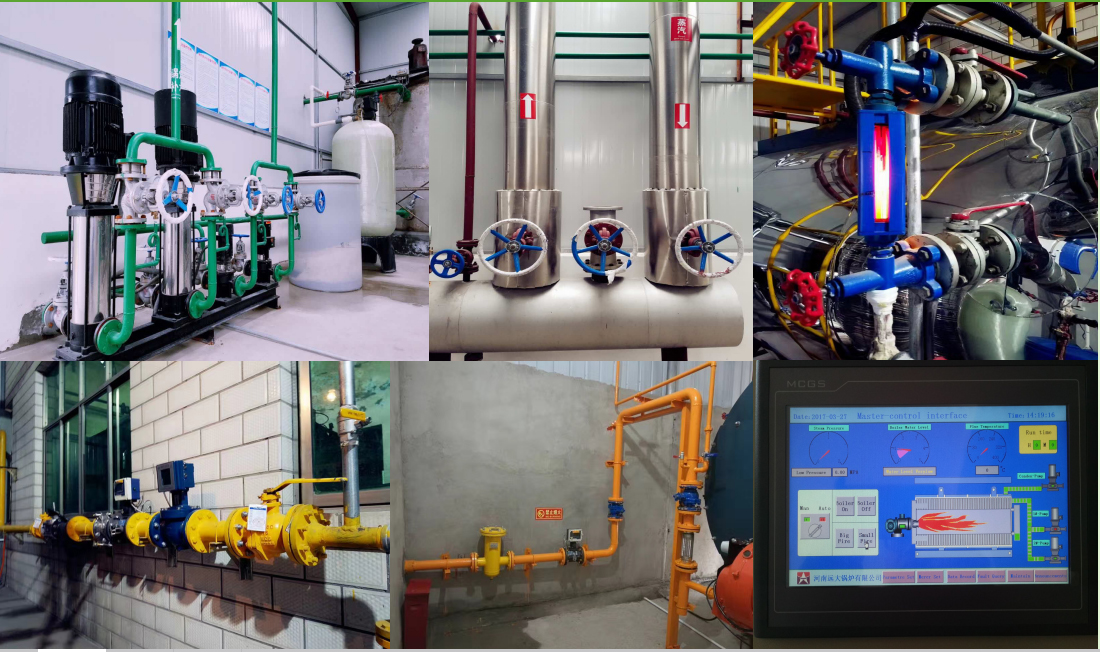

Gas Steam Boiler Product Details
