Gas-fired 2000 kg/h Industrial Steam Boiler used for Food Industry

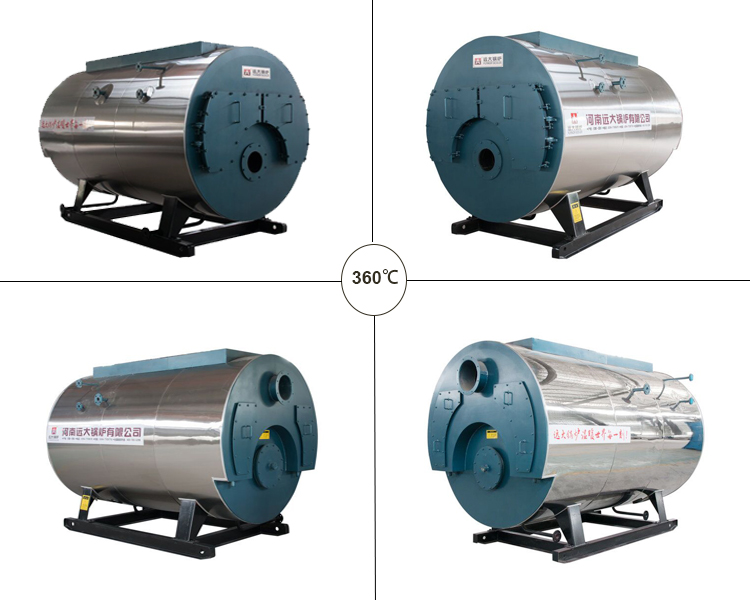

Introduction of Industrial Steam Boiler
WNS is a horizontal type boiler model, inside is fire tube and
furnace.This model boiler is the high technology improvement
boiler, adopt high thermal efficiency.
1. WNS model boiler is a fire tube boiler, adopt large fuenace
design, flue system run in three pass return fully thermal use.
2. New type refractory material,solidification strong, long using
life,which will not fall off after shaking.
3. Continuous feeding water vertical multistage centrifugal
stainless steel pump,no need manual adjustment and at same time,
ensure the stable&safety running of boiler.
4. Equipped with protection devices for overheating, overpressure,
lacking water, leak detection, flameout etc.
5. It normally suitable for 500kg to 20ton/h capacity, use all
kinds of gas and oil fuels,such as natural gas, lpg,lng,cng,city
gas,biogas, diesel oil,heavy oil.
Designs advantages of Industrial Steam Boiler
1. High effiency(exceed 92%) and energy saving(save gas
3-5m3/h;save oil 3-5kg/h)
2. Enough steam output and high quality steam.
3. Safe running and reliable steam quality.
4. Long life span, More than 30 years .
5. Intelligent and fully automatic.
6. Easy inspection and maintenance.
Technical prameter sheet of Industrial Steam Boiler
| Boiler model | Rated capacity | Rated pressure | Rated Steam temp. | Fuel consumption | Thermal efficiency | Weight | Dimensions |
| Heavy oil | Natural gas |
| t/h | Mpa | ℃ | kg/h | m3/h | % | ton | mm |
| WNS1-1.0-Y(Q) | 1 | 1 | 184 | 67.3 | 84.2 | 91 | 4.3 | 3561×1690×1910 |
| WNS 2-1.25- Y(Q) | 2 | 1.25 | 194 | 132.2 | 165 | 92 | 7.2 | 4111×1950×2199 |
| WNS3-1.25-Y(Q) | 3 | 1.25 | 194 | 195 | 250 | 92.1 | 8 | 4330×2248×2564 |
| WNS4-1.25- Y(Q) | 4 | 1.25 | 194 | 261.9 | 323.6 | 93 | 9.6 | 4732×2150×2448 |
| WNS5-1.25- Y(Q) | 5 | 1.25 | 194 | 322 | 386 | 93 | 12.5 | 5970×2360×2796 |
Industrial Steam Boiler application
1. Food industry: steam can be used for food disinfection, cooking;
Wine industry need to use steam;
2. Petrochemical industry: steam can be used to heat oil, to
strengthen the liquidity of oil;
3. Foam, furniture production: the steam can be used for producing
foam. When making furniture, wood needs to be dried with steam;
4. Filling block production:steam used for drying the aerated
brick;
5. Washing ironing industry: generally used in laundry, including
dry cleaning machines, dryers, washing machines, dehydration
machines, ironing machines, iron and other equipment supporting the
use;
6. Packaging machinery industry: labeling machines, sets of
standard machine;
7. Bio-chemical industry: fermentation tank, reactor, sandwich pan,
mixer, emulsifier and other equipment;
8. Food machinery industry: tofu machine, steamer, sterilization
tank, packaging machines, paint equipment, sealing machines and
other equipment;
Industrial Steam Boiler case---6 Ton gas fired steam boiler running site
