Sufficient Output 10 ton Coal Fired Steam Boiler for Paper
Production
There are several boiler model for coal fired steam boiler, coal
fired steam boiler can be suitable for kinds of fuel, such as
coal,biomass pellet, bagasse,ricehusk,wood pellet,wood chips,etc.
We will design the details need to change so that satisfy
customers' indutsrial processing demand.

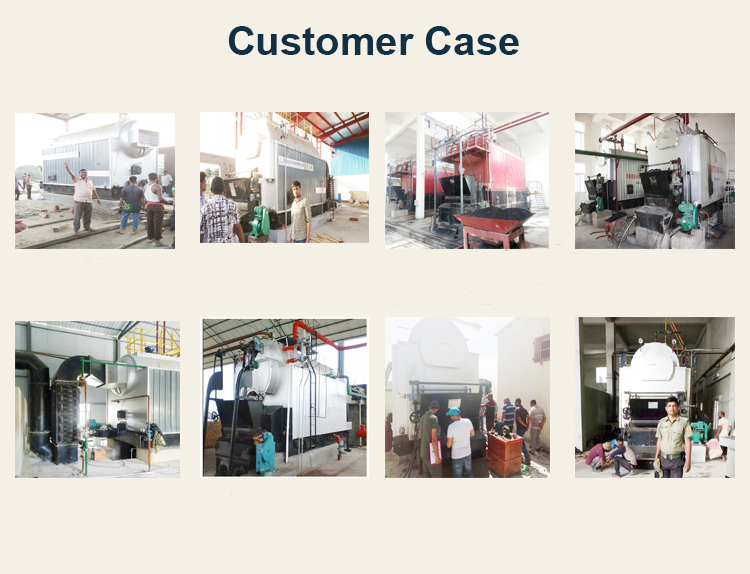

We have exported lots set of coal fired steam boiler to many
countries in world.
| export to Honduras | DZL4-1.25-T | DZL model boiler is a coal/biomass fired steam boiler, high quality
steam output for usage, single drum with water-fired tube
structure, Our Hoduras customer need the 8 ton/hour steam boiler
into using. This model boiler is one with chain grate, automatic
fuel feeding and running, working life can reach 25 years,
sufficient steam supply. |
| export to Vietnam | DZL6-1.25-T DZL4-1.25-T | Biomass is the renewable energy, it's a excellent fuel to fire as
for some area where has rich biomass resource. SZL model boiler,
two drums with water tube , there is large furnace for fuel
burning, improve thermal efficiency. Biomass fuel can be wood
chips, bagasse, ricehusk, peanut shell, corncob,etc. SZL model
boiler is available to 1ton-40ton steam output per hour. |
coal fired steam boiler General introduction
1. Horizontal three pass fire-water tube single drum large
stoker,with automatic chain grate, equipped with automatic feeding
device, there is no need people work. DZL model boiler is a new
eco-friendly and energy-saving product co-developed by our company
and famous Harbin institute of Technology and director of Beijing
Institute of Light Boiler.
2. The boiler is equipped with drum and induced draft fan to
mechanical ventilation, combustion equipment with compact dense
hole grate, especially suitable for biomass fuel combustion.
3. By manual feeding, the flame through the back wall to the
combustion chamber after the combustion, up into the airfoil flue,
and then through the front smoke box thread smoke tube, through the
economizer, air pre-heater, duster and induced draft fan to the
chimney and finally into the atmosphere.
coal fired steam boiler running advantages
1. The output power remain constant
2. The boiler is heating up quickly and have high heat efficiency
3. Low original dust concentration,environmental protection and
energy conservation
4. High quality of steam
5. Strong water quality adaptability
6. Small size appearance, low investment in boiler room
7. Low running cost, safe and reliable (safety and reliability)
8. Short installation time, low installation cost
Technique parameter of coal fired steam boiler
| Boiler Model | Rated capacity | Rated pressure | Feed water temperature | Steam temperature | Active grate area | Exhaust gas temp. | Fuel consumption | Main part dimensions |
| t/h | MPa | ℃ | ℃ | ㎡ | ℃ | Kg/h | mm |
| DZL1-1.0-AII | 1 | 1 | 20 | 184 | 1.85 | 157 | 118 | 5488×2200×2832 |
| DZL2-1.25-AII | 2 | 1.25 | 20 | 194 | 3.4 | 163 | 238 | 5900×2500×3256 |
| DZL4-1.25-AII | 4 | 1.25 | 60 | 194 | 5.18 | 180 | 472 | 6829×2550×3484 |
| DZL6-1.25-AII | 6 | 1.25 | 60 | 194 | 7.55 | 166 | 685 | 7695×3180×4074 |
| DZL10-1.25-AII | 10 | 1.25 | 105 | 194 | 12 | 151 | 1128 | 7746×3773×3441 |
| DZL15-1.25-AII | 15 | 1.25 | 105 | 194 | 18 | 161 | 1698 | 8650×2300×2500 |
| DZL20-1.25-AII | 20 | 1.25 | 105 | 194 | 22.9 | 150 | 2241 | 8915×3373×3337 |
| DZL30-1.25-AII | 30 | 1.25 | 105 | 194 | 27.5 | 157.6 | 3380 | 7942x2440x2550 |
| DZL40-1.25-AII | 40 | 1.25 | 105 | 194 | 34.5 | 162.2 | 4481 | 9568x2036x2568 |
Just parts of coal fired steam boiler details, want to know more,
please feel free to contact us, shirley@yuanda-boiler.com
coal fired steam boiler applictaion
1. Food industry: steam can be used for food disinfection, cooking;
Wine industry need to use steam;
2. Petrochemical industry: steam can be used to heat oil, to
strengthen the liquidity of oil;
3. Foam, furniture production: the steam can be used for producing
foam. When making furniture, wood needs to be dried with steam;
4. Filling block production:steam used for drying the aerated
brick;
5. Washing ironing industry: generally used in laundry, including
dry cleaning machines, dryers, washing machines, dehydration
machines, ironing machines, iron and other equipment supporting the
use;
6. Packaging machinery industry: labeling machines, sets of
standard machine;
7. Bio-chemical industry: fermentation tank, reactor, sandwich pan,
mixer, emulsifier and other equipment;
8. Food machinery industry: tofu machine, steamer, sterilization
tank, packaging machines, paint equipment, sealing machines and
other equipment;
