Manufacturer Price Wns Biogas Methane Natural Gas Fired Industrial
Steam Boiler

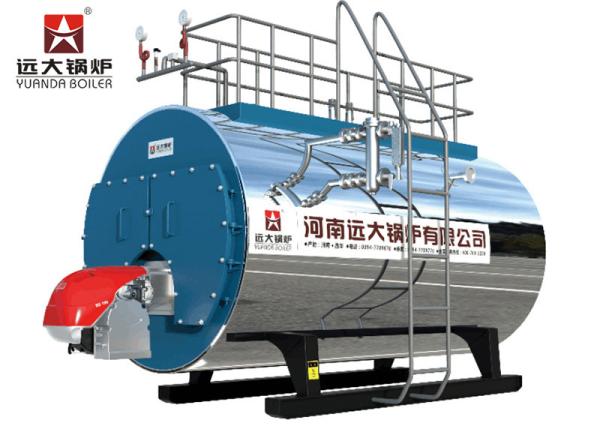

Industrial Steam Boiler adopts horizontal three-pass wet-back
structure,large corrugated furnace and patented thread pipe
technoligy,equipped with international first-level brand burners
and valve groups,and independently developed high-matching PLC
control system to realize multiple inkages.The lock protection
funtion protects the equipment running safely.
Industrial Steam Boiler Quick details:
| Steam Capacity | 1 to 20 ton/hr 0.7MW-14MW |
| Fuel Applicable | Natural gas,LPG, LNG, CNG, Diesel, Light oil, Heavy oil, Kerosene, |
| Working pressure | 0.4-2.5Mpa 4bar-25bar |
| Steam temperature | 184℃, 194℃,226℃ |
| Structure | Three pass, fire tube, wet back |
| NOx emission: | <30mg/㎥ |
| Heat efficiency | ≥95% |
| Application | Industrial production, central heating |
Industrial Steam Boiler Core technology:
1. Nitrogen oxide emissions <30mg/m3;
2. PLC control system;
3. The 5th stage water level protection;
4. Flame-out,power failure self-locking protection function;
5. Automatic fault identification function;
6. Data collection analysis function;
7. Internet of Things remote monitoring.
Industrial Steam Boiler technical parameter
| Boiler model | Capacity | Pressure | Feed temp. | Steam temp. | Fuel consump. | Thermal efficiency |
| Light oil | Heavy oil | Natural gas |
| t/h | Mpa | ℃ | ℃ | kg/h | kg/h | m3/h | % |
| WNS1-1.0-Y(Q) | 1 | 1 | 20 | 184 | 65.5 | 67.3 | 84.2 | 91 |
| WNS 2-1.25- Y(Q) | 2 | 1.25 | 20 | 194 | 129.6 | 132.2 | 165 | 92 |
| WNS3-1.25-Y(Q) | 3 | 1.25 | 20 | 194 | 192 | 195 | 250 | 92.1 |
| WNS4-1.25- Y(Q) | 4 | 1.25 | 20 | 194 | 256 | 261.9 | 323.6 | 93 |
| WNS5-1.25- Y(Q) | 5 | 1.25 | 20 | 194 | 318 | 322 | 386 | 93 |
| WNS6-1.25- Y(Q) | 6 | 1.25 | 20 | 194 | 380 | 390.6 | 450 | 93.2 |
| WNS8-1.25- Y(Q) | 8 | 1.25 | 105 | 194 | 503 | 517 | 642 | 93.5 |
| WNS10-1.25- Y(Q) | 10 | 1.25 | 105 | 194 | 628 | 643 | 805 | 93.5 |
| WNS15-1.25- Y(Q) | 15 | 1.25 | 105 | 194 | 940 | 965 | 1182 | 93.5 |
| WNS20-1.25- Y(Q) | 20 | 1.25 | 105 | 194 | 1250 | 1301 | 1597 | 93.5 |
Industrial Steam Boiler project case:
Safety System each part of the boiler is designed based on the
safety.
1.Independently developed PLC control panel, better match our
boiler operation. Siemens PLC with 10 inch touch screen and
frequency transformer, more safety and easy operation.
Safety control system:
1)Control the feed pump, burner, water level sensor and pressure
controller
2) Control the water feeding:
Automatic Alarm when the water level is high or low, safety
interlock when the water level is over-high or over-low. When the
water level is low, the boiler system will feed water
automatically, when the water level is high, the boiler will stop
feeding water. When the water level lower than 0 or over-high, the
boiler burner flame out.
3)Pressure control
Safety interlock for over-high pressure.
4)Control the smoke temperature, when the smoke temperature is
over-high, it will control the boiler alarm firstly and then the
burner flame out, the boiler shutdown.
5)The burner can switch over from large fire to small fire, control
the burner start and off automatically.
6) remote control system
2.Double safety valve, double water level gauge, double pressure
gauge design, backup security, safe and reliable.
3. All steel materials, boiler pipe, boiler drum steel plate
according to state standard and from national standard
manufacturer, ensure the high material quality.
4.Strict quality control
1)100% NDT nondestructive testing inspection for welding.
2)The boiler needs to be do the hydraulic text before leaving the
factory, and it should be under the supervision of relevant
government departments.
