Methane Lng Lpg Biogas Gas Steam Boiler Fully Automatic Fire Tube
ISO9001
Gas Steam Boiler is package type full automatic horizontal three
pass fire tube wet back structure boiler. Gas Steam Boiler can
produce hot water, saturated steam or superheated steam. Gas Steam
Boiler is adaptable for wide ranges of fuels such as natural gas,
LPG, biogas, methane gas, diesel heavy oil etc.
Gas Steam BoilerQuick details:
| Steam Capacity | 1 to 20 ton/hr 0.7MW-14MW |
| Fuel Applicable | Natural gas,LPG, LNG, CNG, Diesel, Light oil, Heavy oil, Kerosene, |
| Working pressure | 0.4-2.5Mpa 4bar-25bar |
| Steam temperature | 184℃, 194℃,226℃ |
| Structure | Three pass, fire tube, wet back |
| NOx emission: | <30mg/㎥ |
| Heat efficiency | ≥95% |
| Application | Industrial production, central heating |
Gas Steam Boiler description and superior advantages
Gas steam boiler is horizontal three pass fire tube wet back full
automatic steam boiler. Gas steam boiler normally suitable for
500kg to 20ton/h capacity, use all kinds of gas and oil fuels,such
as natural gas, lpg,lng,cng,city gas,biogas, diesel oil,heavy oil.
1. High effiency(exceed 92%) and energy saving(save gas
3-5m3/h;save oil 3-5kg/h)..
(1). Three pass structure,which extend the flow of smoke and
enhance the heat transfer.
(2). Adopt bog size whole corrugated furnace,big heating
area,sastify the free expansion of boiler, improve the boiler
effiency.
2. Enough steam output and high quality steam.
(1). Our boiler design big size water volume,the steam output is
stable and steam quality is good.
(2). Design special steam water separator,reduce steam humidity and
improve steam quality.
3. Safe and reliable.
(1). Whole wet back structure and transition multi-loop
full-temperature condenser design, ND just material, fin tube
design,which highly reduces the back plate sheet temperature(around
50°).
(2). Double layer 12cm aluminum silicate insulation material,two
stage anti-leak design and tight seal to avoid leakage phenomenon.
(3). Design tension bars,increasing the tube plate strength,
preventing cracking.
4. Long life span(More than 20 years ).
(1). 5-10% overload capacity design and reasonably configurate
spare parts,reduce equipment fatigue.
(2). New type refractory material,solidification strong, long using
life,which will not fall off after shaking.
(3). 61 years boiler manufacturing experience, mature design and
production team.
5. Intelligent and fully automatic.
(1). Adopt world famous brand burner,including baltur, riello from
italy, weishaupt,hofat from Germany,Olin from Finland, etc.
(2). Adopt mechanical-electrical integration control equipment and
programmable logic controller(PLC) touch screen electric control
cabinet.
Gas steam boiler technical parameter
| Boiler model | Capacity | Pressure | Feed temp. | Steam temp. | Fuel consump. | Thermal efficiency |
| Light oil | Heavy oil | Natural gas |
| t/h | Mpa | ℃ | ℃ | kg/h | kg/h | m3/h | % |
| WNS1-1.0-Y(Q) | 1 | 1 | 20 | 184 | 65.5 | 67.3 | 84.2 | 91 |
| WNS 2-1.25- Y(Q) | 2 | 1.25 | 20 | 194 | 129.6 | 132.2 | 165 | 92 |
| WNS3-1.25-Y(Q) | 3 | 1.25 | 20 | 194 | 192 | 195 | 250 | 92.1 |
| WNS4-1.25- Y(Q) | 4 | 1.25 | 20 | 194 | 256 | 261.9 | 323.6 | 93 |
| WNS5-1.25- Y(Q) | 5 | 1.25 | 20 | 194 | 318 | 322 | 386 | 93 |
| WNS6-1.25- Y(Q) | 6 | 1.25 | 20 | 194 | 380 | 390.6 | 450 | 93.2 |
| WNS8-1.25- Y(Q) | 8 | 1.25 | 105 | 194 | 503 | 517 | 642 | 93.5 |
| WNS10-1.25- Y(Q) | 10 | 1.25 | 105 | 194 | 628 | 643 | 805 | 93.5 |
| WNS15-1.25- Y(Q) | 15 | 1.25 | 105 | 194 | 940 | 965 | 1182 | 93.5 |
| WNS20-1.25- Y(Q) | 20 | 1.25 | 105 | 194 | 1250 | 1301 | 1597 | 93.5 |

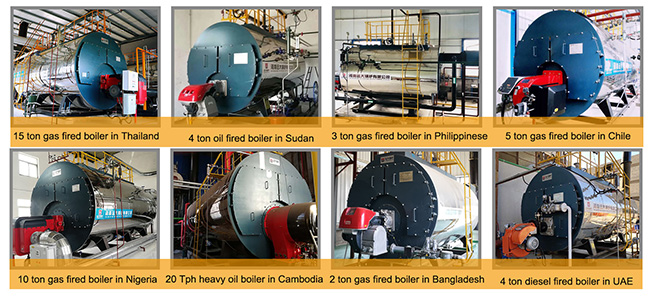

Gas steam boiler project case:
| Country | Boiler model | how boiler work |
| export to Cambodia | WNS15-1.25-Y(Q) | Gas oil fired steam boiler is very popular, Vietnam customer uses
it for the clothes factory, Ethiopia customers uses it for food
processing factory, Bangladesh customer uses it for the milk
processing factory, African customer use it for the wood processing
factory, etc. |
| export to Tanzanian | WNS10-1.25-Y(Q) |
| export to Saudi Arabia | WNS8-1.25-Y(Q) |
| export to Sri Lanka | WNS3-1.25-Y(Q) | Coal fired steam boiler is very popular, Vietnam customer uses it
for textile industry, Philippines customers uses it for wood
processing factory, Bangladesh customer uses it for feed processing
factory, Sri Lanka customer use it for paper processing factory,
etc. |
| export to Chile | WNS2-1.0-Y(Q) |
| export to Bangladesh | WNS4-1.25-Y(Q) | Fire tube steam boiler, fuel can be natural gas,lpg,cng,light oil,
heavy oil. This model boiler can be used for textile factory,very
convenient and easy-operation. Our boiler can ensure 100% running
safety and no-problem working. Some of of customer use it for food
making, like rice mill, wine factory, sauce making factory,etc.
There are many production technology process, need steam boiler to
carry out. |
Gas steam boiler application fields
1. Food industry: steam can be used for food disinfection, cooking;
Wine industry need to use steam;
2. Petrochemical industry: steam can be used to heat oil, to
strengthen the liquidity of oil;
3. Foam, furniture production: the steam can be used for producing
foam. When making furniture, wood needs to be dried with steam;
4. Filling block production:steam used for drying the aerated
brick;
5. Washing ironing industry: generally used in laundry, including
dry cleaning machines, dryers, washing machines, dehydration
machines, ironing machines, iron and other equipment supporting the
use;
6. Packaging machinery industry: labeling machines, sets of
standard machine;
7. Bio-chemical industry: fermentation tank, reactor, sandwich pan,
mixer, emulsifier and other equipment;
8. Food machinery industry: tofu machine, steamer, sterilization
tank, packaging machines, paint equipment, sealing machines and
other equipment;
After-sale service:
1. provide full range of original spare parts.
2. We will send engineers to your local project site to guide the
installation and commissioning.
3. Our engineers will held a training for boiler workers to ensure
the safe operation.
4. Free maintenance and repair for one year and lifelong service.
