Duel Fuel Diesel Oil Gas Fired Industrial Steam Boiler For Carton
Cardboard Factory

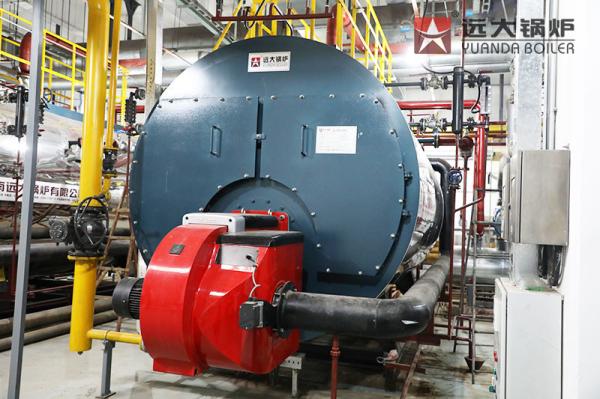

Steam boiler project details:
Company: Dongguan Taida Packing Products Co., Ltd.
Boiler capacity: 6 ton steam boiler
Boiler accessory system:
1. Ultra-low nitrogen 6 ton boiler host + air preheater +
atmospheric condenser
2, burner: Italy Liya Road DB6 T150+18.5KW blower
3. Closed steam condensate recovery (condensed water directly back
to the boiler)
4, hot air temperature: 75 ° C
6, exhaust gas temperature: 108-140 ° C
7. Average ton steam consumption <60m3
8, softened water tank temperature 90 ° C
WNS series gas/oil fired steam boiler is horizontal three pass fire
tube wet back full automatic steam boiler. It normally suitable for
500kg to 20ton/h capacity, use all kinds of gas and oil fuels,such
as natural gas, lpg,lng,cng,city gas,biogas, diesel oil,heavy oil.
Technical parameter sheet
| Boiler model | Capacity | Pressure | Feed temp. | Steam temp. | Fuel consump. | Thermal efficiency |
| Light oil | Heavy oil | Natural gas |
| t/h | Mpa | ℃ | ℃ | kg/h | kg/h | m3/h | % |
| WNS1-1.0-Y(Q) | 1 | 1 | 20 | 184 | 65.5 | 67.3 | 84.2 | 91 |
| WNS 2-1.25- Y(Q) | 2 | 1.25 | 20 | 194 | 129.6 | 132.2 | 165 | 92 |
| WNS3-1.25-Y(Q) | 3 | 1.25 | 20 | 194 | 192 | 195 | 250 | 92.1 |
| WNS4-1.25- Y(Q) | 4 | 1.25 | 20 | 194 | 256 | 261.9 | 323.6 | 93 |
| WNS5-1.25- Y(Q) | 5 | 1.25 | 20 | 194 | 318 | 322 | 386 | 93 |
| WNS6-1.25- Y(Q) | 6 | 1.25 | 20 | 194 | 380 | 390.6 | 450 | 93.2 |
| WNS8-1.25- Y(Q) | 8 | 1.25 | 105 | 194 | 503 | 517 | 642 | 93.5 |
| WNS10-1.25- Y(Q) | 10 | 1.25 | 105 | 194 | 628 | 643 | 805 | 93.5 |
| WNS15-1.25- Y(Q) | 15 | 1.25 | 105 | 194 | 940 | 965 | 1182 | 93.5 |
| WNS20-1.25- Y(Q) | 20 | 1.25 | 105 | 194 | 1250 | 1301 | 1597 | 93.5 |
The above is standard models of our boiler, customized
specifications are available.
Application fields
1. Food industry: such as juice processing factory, tomato sauce
factory, wine factory, rice mills,etc.
2. Textile mill, dyeing, garment factory
2. Petrochemical industry: steam can be used to heat oil, to
strengthen the liquidity of oil;
3. Foam, furniture production: the steam can be used for producing
foam. When making furniture, wood needs to be dried with steam;
4. Filling block production:steam used for drying the aerated
brick;
5. Washing ironing industry: generally used in laundry, including
dry cleaning machines, dryers, washing machines, dehydration
machines, ironing machines, iron and other equipment supporting the
use;
6. Packaging machinery industry: labeling machines, sets of
standard machine;
WNS series diesel oil gas steam boiler project cases:
| export to Chile | WNS2-1.0-Y(Q) |
2ton gas/oil fired steam boiler export to Chile
|
| export to Pakistan | WNS5-1.6-Y(Q) |
5ton diesel fired steam boiler export to Pakistan
|
| export to Egypt | WNS10-1.5-Y |
7MW /10ton Natural gas fired thermal oil heater boiler export to
Egypt
|
| export to Ghana | WNS1.5-1.0-Y |
1500kg natural gas fired steam boiler will work for customer's soft
factory
|
| export to Cambodia | WNS15-1.25-Y(Q) | Gas oil fired steam boiler is very popular, Vietnam customer uses
it for the clothes factory, Ethiopia customers uses it for food
processing factory, Bangladesh customer uses it for the milk
processing factory, African customer use it for the wood processing
factory, etc. |
| export to Tanzanian | WNS10-1.25-Y(Q) |
| export to Saudi Arabia | WNS8-1.25-Y(Q) YY(Q)W-1400Y(Q) |
| export to New Zealand | WNS0.5-1.0-Q |
Natural gas fired steam boiler will work for honey making factory,
our New Zealand customer bought one 500kg steam boiler for food
making industry.
|
| export to Bangladesh | WNS4-1.25-Y(Q) WNS1-1.0-Y(Q) |
Fire tube steam boiler, fuel can be natural gas,lpg,cng,light oil,
heavy oil. This model boiler can be used for textile factory,very
convenient and easy-operation. Our boiler can ensure 100% running
safety and no-problem working. Some of of customer use it for food
making, like rice mill, wine factory, sauce making factory,etc.
There are many production technology process, need steam boiler to
carry out.
|
