Reliable and Safe Diesel Oil Lpg Lng Cng Natural Gas Fired Thermal
Oil Heater Boiler

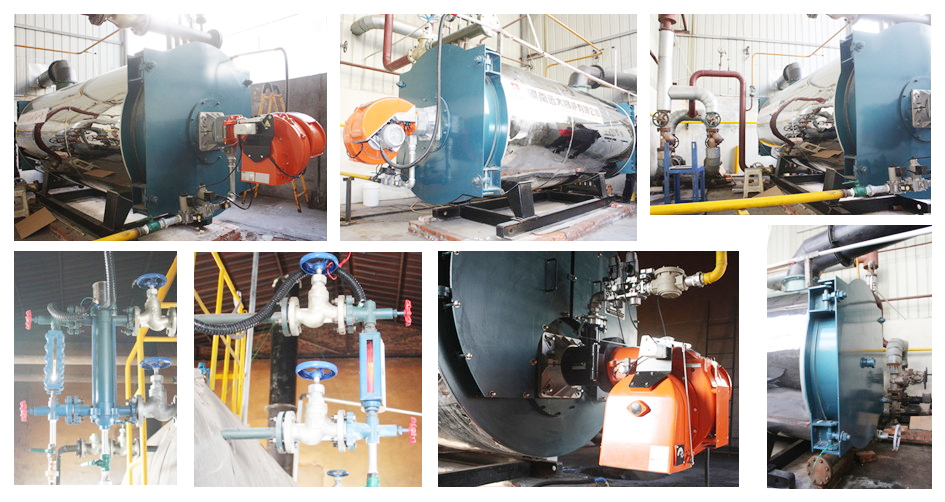

Special features of thermal oil heater boiler
1. Double seal groove design
Secondary prevent air leakage design, tight seal, avoid air leakage
2. Unique tail heating surface design
Boiler rolling chamber wet back structure,small boiler heat
loss,avoid overheat caused by over-burning of side panels, and
increase thermal efficiency by 2-3%.
3. Unique coil tube repair and integration process
The disk is compact and no gap,there is no smoke short circuit,long
gas flow, heated fully, high efficiency
4. Boiler multistage energy saving device design
The tail can set air preheater, wasted heat boiler,economizer,low
smoke exhaust temperature, improve boiler efficiency 10%
5. Design of angular and smooth surface of outsourcing panel
Prevent the injury accident when checking the equipment
6. Triple coil,three-pass smoke,fire wrapped in oil structure
design,
Large radiant heating furnace,high thermal efficiency of the
boiler,prevent the boiler shell from firing deformation at the high
temperature
Technical parameter table of thermal oil heater boiler
| Item | Unit | Data |
| Rated capacity | KW(kcal) | 1400KW(1200,000kcal) |
| Design pressure | Mpa | 0.8Mpa |
| Hydrostatictest | Mpa | 1.2 |
| Rated output temperature | °C | 280 |
| Rated return temperature | °C | 250 |
| Heat carrier circulation flow capacity | m³/h | 74.696 |
| Heating area | Radiative heating area | ㎡ | 7.797 |
| Convection tube heating area | ㎡ | 45.29 |
| Heating area of economizer | ㎡ | 25.749 |
| Design efficiency(heavy oil fired) | % | 92.65 |
| Exhaust temperature(heavy oil fired) | °C | 123.56 |
| Fuel consumption (heavy oil fired) | kg/h | 131.8 |
| Heat carrier medium capacity in furnace | m³ | 1.2 |
| Medium flow speed in radiation area | m/s | 2.54 |
| Medium flow speed in convection area | m/s | 2.54 |
| Weight | Ton | 4 |
| Dimension | mm | 3710*1524*2150 |
| This is only the technical datasheet of our
1400kw(1200,000kcal)thermal oil boiler. For other models,please
contact us for details. |
Thermal oil heater oiler application
Widely used in petroleum, chemical, pharmaceutical, textile
printing and dyeing, light industry, building materials, food, road
asphalt heating and other industrial fields requiring high
temperatures.
Thermal oil heater boiler advantages
1.It is easy and convenient to install the boiler,only setting the
boiler on the foundation.
2.Heating surface is formed by round coilers,sufficient
arrangement,reducing thermal load of tubes surface to ensure
safety.
3.Furnace dimensions is matching with the combustion flame,positive
pressure combustion,high radiation heat exchange efficiency.
4.Boiler structure is compact,saving the floor area of boiler room.
5.An air pre-heater or heat recovery boiler is placed behind the
boiler to improve the thermal efficiency.
