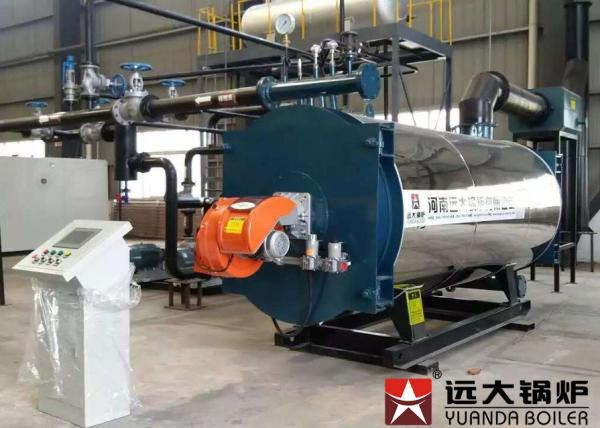

7000Kw Diesel Fired Thermal Oil Heating Boiler For Wood Processing
Industry
Thermal Oil Heater Boiler introduction
Thermal Oil Heater Boiler (also called organic heat carrier boiler
or hot oil boiler), generally uses coal, oil and gas as fuel, and
heat transfer oil as medium. The hot oil circulation oil pump is
used to force the medium to perform liquid phase circulation (for
the gas phase furnace, no circulation pump is needed), and the heat
energy after being sent to the heating equipment, return to the
heating furnace and reheat. It has a high operating temperature at
low pressure and high precision control of media operation.
Thermal Oil Heater Boiler systerm:
Core advantages of thermal oil heater boiler:
1. Adopting three-return wet-back structure, it fundamentally
solves the problem that the back-burning chamber temperature is too
high and the rear smoke box is burnt out;
2. The heated surface adopts a close-packed disc tube, and the
heated surface is arranged sufficiently to reduce the heat load on
the surface of the tube, ensure safer operation;
3. With multiple security protection functions: super oil
temperature alarm, super smoke temperature alarm, low flow alarm,
liquid level protection, flameout protection, system chain;
4. The boiler adopts large front and rear door design, which is
convenient for overhaul;
5. The air preheater or waste heat boiler can be installed at the
tail of the boiler to improve the efficiency of thermal energy
utilization.
Thermal Oil Heater Boiler Technical parameters table
| Model | Rated Thermal Power (MW) | Rated Working Pressure (Mpa) | Rated Outlet Temperature (℃) | Heat Efficiency (%) | Fuel Consumption |
| Gas | Oil | Gas m³/h | Oil Kg/h |
| YY(Q)W-700Y(Q) | 0.7 | 0.8 | 320 | 92.93 | 93.16 | 84.26 | 69.1 |
| YY(Q)W-1400Y(Q) | 1.4 | 0.8 | 320 | 91.41 | 91.65 | 169.11 | 138.78 |
| YY(Q)W-2100Y(Q) | 2.1 | 0.8 | 320 | 93.91 | 94.17 | 259.6 | 212.52 |
| YY(Q)W-3000Y(Q) | 3 | 0.8 | 320 | 92.08 | 92.57 | 385.16 | 313.41 |
| YY(Q)W-3500Y(Q) | 3.5 | 0.8 | 320 | 92.99 | 93.3 | 431.92 | 353.31 |
| YY(Q)W-4200Y(Q) | 4.2 | 1.1 | 320 | 94.2 | 94.54 | 516.38 | 422.57 |
| YY(Q)W-7000Y(Q) | 7 | 1 | 320 | 96% | 96.24 | 857.7 | 702.12 |
The listed technical parameters are for reference only and can be
designed according to different requirements of users.
Application use industry
1. Wood processing industry: Drying and forming of beaver board,
shaving board, laminated sheet, etc.
2. Building industry: Asphalt dissolution, concrete heating tank,
waterproof material, felt production, etc
3. Textile printing and dyeing Industry: Heat setting, textile
printing, ageing, drying, etc.
4. Plastic and rubber industry: Hot pressing, calendering,
extrusion, vulcanization, artificial leather processing, etc.
5. Chemical industry: Polymerization and condensation reaction,
distillation, rectification, concentration, evaporation, fusion
6. Oil production industry: Decomposing, deodorization, oil acid
distillation, hydrogenation and esterification reaction, etc
After sales service
Thermal Oil Heater Boiler spare parts service:
A full range of original spare parts are available for all Yuanda
boilers
Service before sale:
Provide relative technical data for customer choosing equipment,
layout drawing,foundation,general drawing.
Service after sale:
Help customer for installation and training.
Engineers abroad service is available.
Maintenance and repair for two years
Pls send us inquiry get professional service.
