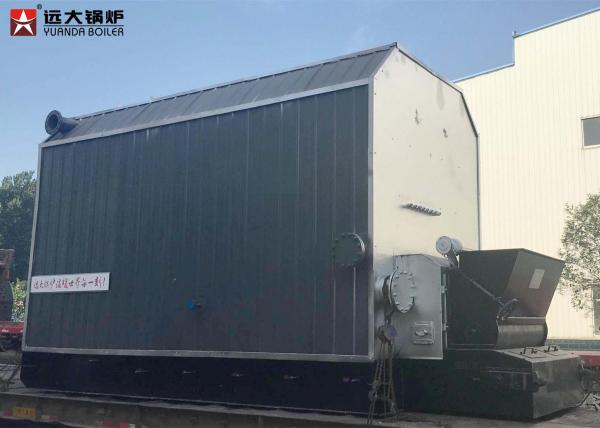

1500Kw Thermal Oil Boiler Oil Thermal Heater For Cardboard Factory
General introduction
Boiler model:YLW
Boiler fuel: Coal, biomass, wood chips
1. Adoption of automatic temperature control function is made to
achieve stable heating and precise temperature adjustment, which
may meet different requirements.
2. It adopts perfect running control and safety monitoring device
with safety, reliability and easy operation.
3. Fast packaged or assembled for shipment with easy
transportation, short installation period, and fast return of
Investment.
4. The boiler features heat preservation performance with
high-efficiency heat preservation material and state-of-the-art
construction technology, lower radiating loss of boiler wall.
5. Fast temperature rise, high thermal efficiency, with overload
capacity at a certain degree to ensure output of boiler.
6. Outstanding energy-saving effect, saving energy by 10-15%
compared with similar products, return of investment for the
equipment in the whole boiler room may be attained by capital of
saved energy for one year operation.
Technical parameter for reference
| Thermic fluid boiler model | YLW-1200MA | YLW-1400MA | YLW-2000MA | YLW-2400MA | YLW-3000MA | YLW-3500MA | YLW-4100MA |
| Thermal power(KW) | 1200 | 1400 | 2000 | 2400 | 3000 | 3500 | 4100 |
| Heat efficiency(%) | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| Design pressure(%) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
| Tmax(°C) | 320 | 320 | 320 | 320 | 320 | 320 | 320 |
| Circulation oil volume(m³/h) | 100 | 100 | 160 | 180 | 200 | 200 | 250 |
| Pipng connecting diameter(DN) | 125 | 150 | 150 | 150 | 150 | 150 | 150 |
| Total weight(kg) | 19800 | 20500 | 21500 | 24600 | 33760 | 35800 | 37500 |
Thermal Oil Boiler Advantages
1.It is easy and convenient to install the boiler,only setting the
boiler on the foundation.
2.Heating surface is formed by round coilers,sufficient
arrangement,reducing thermal load of tubes surface to ensure
safety.
3.Furnace dimensions is matching with the combustion flame,positive
pressure combustion,high radiation heat exchange efficiency.
4.Boiler structure is compact,saving the floor area of boiler room.
5.An air pre-heater or heat recovery boiler is placed behind the
boiler to improve the thermal efficiency.
Boiler application fields
Wood industry: Drying and forming of beaver board, shaving board,
laminated sheet, etc.
Building industry: Asphalt dissolution, concrete heating tank,
waterproof material, felt production, etc
Textile dyeing and finishing Industry: Heat setting, textile
printing, ageing, drying, etc.
Plastic and rubber industry: Hot pressing, calendering, extrusion,
vulcanization, artificial leather processing, etc.
Chemical industry: Polymerization and condensation reaction,
distillation, rectification, concentration, evaporation, fusion
Oil production industry: Decomposing, deodorization, oil acid
distillation, hydrogenation and esterification reaction, etc.
4TON Thermmal oil heater boiler will be deliveried to Indonesia
