Brand Name : | Yuanda Thermal Oil Heater |
Model Number : | YLW |
Certification : | ISO9001,SGS,CE |
Price : | Price can be discussed. |
Payment Terms : | D/P, T/T, L/C, D/A, Western Union |
Supply Ability : | 600 set per year |
Delivery Time : | 20 working days after payment |

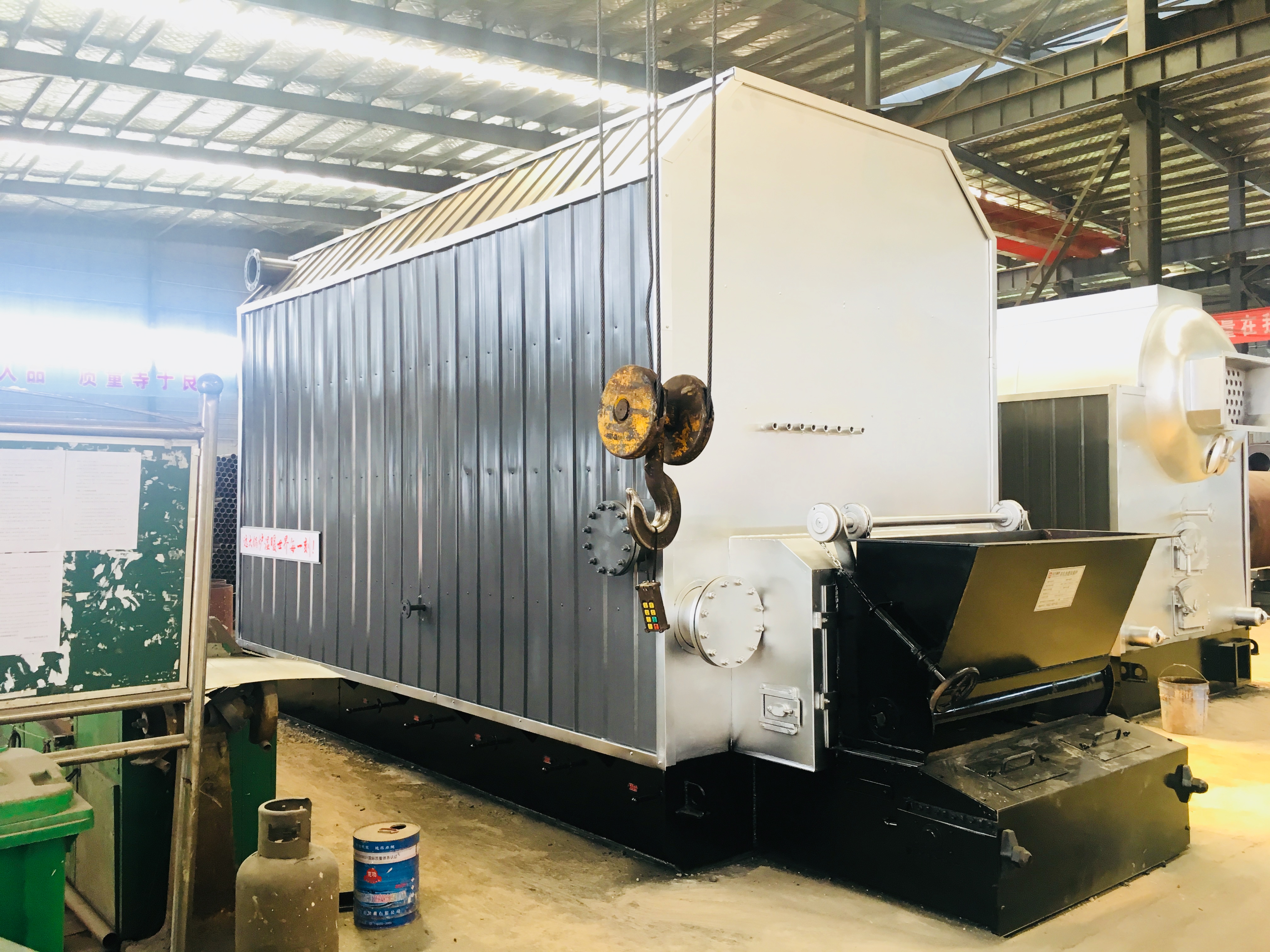

2900MA Biomass Fired Thermal Oil Heater Boiler For Plywodd Production
General introduction
1. Adopted Closed-disc tube design in heating surface, large heating surface, reduce the thermal load on tube surface . The thermal efficiency is high and run safer.
2. The fuel combust adiabatically in the combustion chamber, making
it easier to fire and burn more fully, improving boiler thermal
efficiency.
3, The media flow is reasonable, thermal conductive oil run from
the low import to high export, gas generated during the operation
can be remove easily.
4. The top of the furnace is arranged with dense coiled tubing to
better protect the top of the furnace, avoid burning furnace roof.
5. Easy installation, no foundation, only according to the upper
body and the lower grate can be closed, the installation cycle is
short.
Take technical parameter for reference
Thermic fluid boiler model | YLW-1200MA | YLW-1400MA | YLW-2000MA | YLW-2400MA | YLW-3000MA | YLW-3500MA | YLW-4100MA |
Thermal power(KW) | 1200 | 1400 | 2000 | 2400 | 3000 | 3500 | 4100 |
Heat efficiency(%) | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
Design pressure(%) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
Tmax(°C) | 320 | 320 | 320 | 320 | 320 | 320 | 320 |
Circulation oil volume(m³/h) | 100 | 100 | 160 | 180 | 200 | 200 | 250 |
Pipng connecting diameter(DN) | 125 | 150 | 150 | 150 | 150 | 150 | 150 |
Total weight(kg) | 19800 | 20500 | 21500 | 24600 | 33760 | 35800 | 37500 |
Biomass fired thermal oil heater boiler advantages
1.It is easy and convenient to install the boiler.
2.Sufficient arrangement,reducing thermal load of tubes surface to
ensure safety.
3. Positive pressure combustion,high radiation heat exchange
efficiency.
4. Boiler structure is compact,saving the floor area of boiler
room.
5. An air pre-heater or heat recovery boiler is placed behind the
boiler to improve the thermal efficiency.
Boiler application
1. Chemical industry
2. In the fat industry
3. In the food industry
4. Textile printing and dyeing industry
5. Medical industry
6. Synthetic fiber industry
7. Paper industry
8. Plastic and rubber industry
9. Wood processing industry
10. Building materials industry
11. Fat and paint industry
12. Automotive Manufacturing
13. Soap detergent industry
14. Tar processing industry
15. Road construction project
![]() |
