6Ton Thermal Oil Heater Boiler High Efficiency For Production Plant
General introduction
Boiler model:YLW
Boiler fuel: Coal, biomass, wood chips
1. Adoption of automatic temperature control function is made to
achieve stable heating and precise temperature adjustment, which
may meet different requirements.
2. It adopts perfect running control and safety monitoring device
with safety, reliability and easy operation.
3. Fast packaged or assembled for shipment with easy
transportation, short installation period, and fast return of
Investment.
4. The boiler features heat preservation performance with
high-efficiency heat preservation material and state-of-the-art
construction technology, lower radiating loss of boiler wall.
5. Fast temperature rise, high thermal efficiency, with overload
capacity at a certain degree to ensure output of boiler.
6. Outstanding energy-saving effect, saving energy by 10-15%
compared with similar products, return of investment for the
equipment in the whole boiler room may be attained by capital of
saved energy for one year operation.
Take technical parameter for reference
| Thermic fluid boiler model | YLW-1200MA | YLW-1400MA | YLW-2000MA | YLW-2400MA | YLW-3000MA | YLW-3500MA | YLW-4100MA |
| Thermal power(KW) | 1200 | 1400 | 2000 | 2400 | 3000 | 3500 | 4100 |
| Heat efficiency(%) | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| Design pressure(%) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
| Tmax(°C) | 320 | 320 | 320 | 320 | 320 | 320 | 320 |
| Circulation oil volume(m³/h) | 100 | 100 | 160 | 180 | 200 | 200 | 250 |
| Pipng connecting diameter(DN) | 125 | 150 | 150 | 150 | 150 | 150 | 150 |
| Total weight(kg) | 19800 | 20500 | 21500 | 24600 | 33760 | 35800 | 37500 |
Boiler application fields
1. In the road construction project, it is mainly used for heating
and insulation of asphalt heating, dissolving, asphalt storage
tank, asphalt concrete and emulsified asphalt.
2. In the building materials industry, the heat transfer oil
furnace is mainly used for gypsum board drying, concrete member
solidification protection and prefabrication production, tile
stamping, decorative material drying and linoleum production line
heat.
3. In the wood industry, it is mainly used for the hot pressing of
fiberboard, particleboard, laminate, plywood, veneer and wood
drying equipment, drying equipment, coating equipment and glue
machine heating.
4. In the fat industry, the heat transfer oil furnace is mainly
used for heating of oil, such as oil decomposition, fatty acid
distillation, lipidation, nitrification, hydrogenation reflection,
concentration, vacuum deodorization and the like.
5. In the paper industry, it is mainly used for heating of glue
roller, drying roller, drying room, drying cabinet, hot melt
machine, melting wax pot and corrugated paper processing.
6. In the fat and paint industry, it is mainly used for heating in
autoclaves, dryers, distillation irrigation, evaporation equipment,
paint drying, baking, drying and high temperature curing.
7. In the medical industry, it is mainly used for the preparation
of drugs, raw material mixing, disposition, disinfection,
distillation, evaporation, melting and other equipment and
equipment heating.

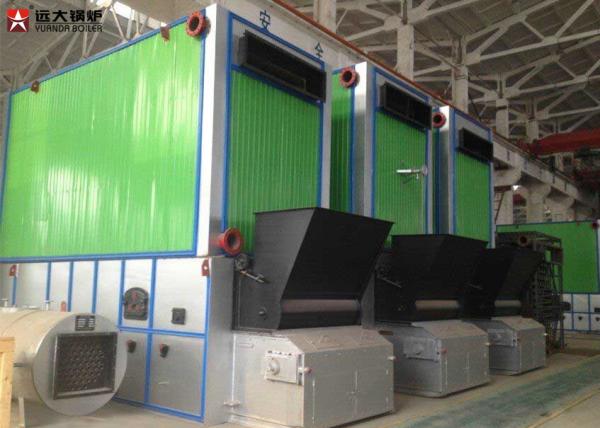

Thermmal oil heater boiler deliveried to Indonesia
