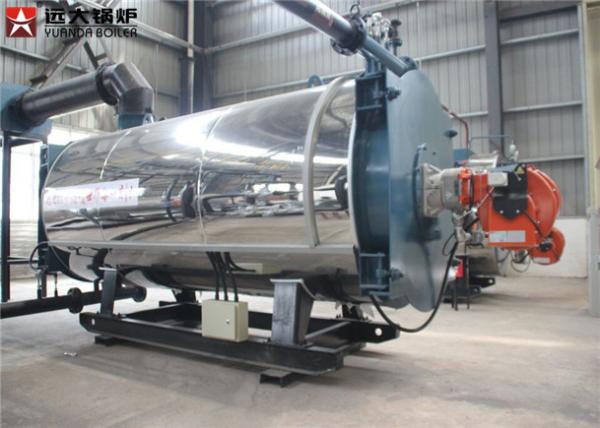

Asphalt Mixing Plant Used Thermal Oil Heater Boiler For Heating Bitumen

General Introduction

YY (Q) W series thermal oil boiler is a kind of boiler which uses gas(oil) as fuel ,thermic oil as medium, hot oil circulation pump to make the medium to forced circulation, deliver the heat to heating need equipments and then go back to the heating furnace.It can obtain a high operating temperature at low pressure and
can do high-precision control on the medium.

This series boiler has compact structure. The heating area is constituted by close-knit coil pipes from inside to outside.Inside coil pipes are the radiation heating surface, and the outer surface of inside coil pipes and outside coil pipes form a convection heating surface.Fuel burn fully in the combustion chamber, the radiation heating surface absorb most heat, and then high temperature flue gas goes into convection heating surface to exchange heat, then go into the air preheater (or waste heat boiler) to heat the required (or water).at last, the low temperature flue gas discharges to the aerosphere through the chimney.

Technical parameter table of Thermal oil heater boiler

Thermal oil heater advantages

1.It is easy and convenient to install the boiler,only setting the boiler on the foundation.
2.Heating surface is formed by round coilers,sufficient arrangement,reducing thermal load of tubes surface to ensure safety.
3.Furnace dimensions is matching with the combustion flame,positive pressure combustion,high radiation heat exchange efficiency.
4.Boiler structure is compact,saving the floor area of boiler room.
5.An air pre-heater or heat recovery boiler is placed behind the boiler to improve the thermal efficiency.

Application industries

1. Chemical industry
2. In the fat industry
3. In the food industry
4. Textile printing and dyeing industry
5. Medical industry
6. Synthetic fiber industry
7. Paper industry
8. Plastic and rubber industry
9. Wood processing industry
10. Building materials industry
11. Fat and paint industry
12. Automotive Manufacturing
13. Soap detergent industry
14. Tar processing industry
15. Road construction project

Henan Yuanda Boiler Co., Ltd., established in 1956, locates in Xihua county, Henan province, the central part of China. We are professional manufacturer and supplier for industrial boilers, with over 60 years' experience in boiler design, technique, production, installation and operation. Our company is one of the leading enterprises which first obtained the national boiler manufacturing license in China.

Yuanda devoted to boiler production and sales business, sell boilers at home and aboad. So far, we have sell boilers to more than 80 countries and regions,such as Pakistan, India, Sri Lanka in South Asia, Philippine, Indonisia, Malaysia, Thailand, Vietnam, Myanmar, Cambodia in South-east Asia, Saudi Arabia, UAE in Middle East, Tanzania, Egypt, Nigeria, Kenya, South Africa in Afica, Russia, Ukraine in Eruope and Mexico, Chile in South America. Our products have gained excellent reputation all over the world.

Our main products are:
(1) WNS series gas oil fired boiler
(2) DZL / DZH series coal wood fired boiler
(3) SZL series coal biomass boiler
(4) YY (Q)W series Gas oil fired thermal oil boiler
(5) YLW series coal biomass fired thermal oil boiler

(6) ZWNS series gas oil fired vacuum hot water boiler
(7) All kinds of pressure vessels

Yuanda Boiler is committed to providing industrial boilers with higher thermal efficiency, lower fuel consumption and more environmentally friendly.

We look forward to making a brilliant future with you.
