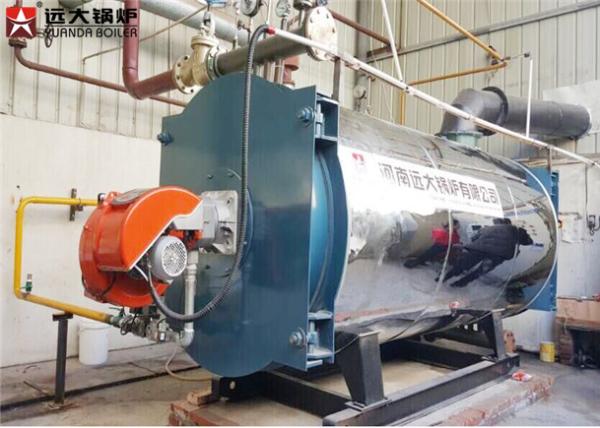

Asphalt Mixing Plant Used Thermal Oil Heater Boiler For Heating
Bitumen
General Introduction
YY(Q)W series of organic heat carrier boiler is quick-fitting
forced circulation fuel oil(gas)boiler,this series boiler's is
compact structure,the heating area is constituted by closed coil
pipes from inside(or internal and external),inside coil pipes are
the radition heating surface.Fuel in inside theinner coil pipe form
the combustion chamber,the fuel burn inside and release heat and
absorb most of the quantity of heat after radiation heating,high
temperature flue gas transfer heat through convection heating
surface,then go into the air preheater (or waste heat boiler) to
heat the required air(or water) ,the low temperature flue gas from
boiler discharge directly to the chimney then to the atmosphere.
Features of thermal oil heater
1. Professional industrialized packing design,stainless steel
packingharmonious structure proportion
2. Triple coil,three-pass smoke,fire wrapped in oil structure
design, large radiant heating furnace,high thermal efficiency of
the boiler,prevent the boiler shell from firing deformation at the
high temperature
3. Double-deck aluminum silicate for heat preservation,the surface
temperature of the boiler is no higher than 40℃,energy conservation
and efficient
4. The outer oil collecting box is designed to prevent the slow
rate of grease from carbonizing avoid air leakage
5. 60years’precipitation,mature production technicians team,good
matching among the set of equipment,technology skilled,stable
quality
6. Material supplied by large international factory,manufactured by
Anyang Iron Steel and Tianjin Seamless Steel Pipe plant,ensure the
quality
7. Large load imported burner configuration,80% configuration
ratio,light load drive,enough thermal energy import,guaranteed
output,reduce equipment use fatigue,extend the service life,the
quality of inlet valve group is steady and reliable
Technical parameter table of Thermal oil heater boiler
| Item | Unit | Data |
| Rated capacity | KW(kcal) | 1400KW(1200,000kcal) |
| Design pressure | Mpa | 0.8Mpa |
| Hydrostatictest | Mpa | 1.2 |
| Rated output temperature | °C | 280 |
| Rated return temperature | °C | 250 |
| Heat carrier circulation flow capacity | m³/h | 74.696 |
| Heating area | Radiative heating area | ㎡ | 7.797 |
| Convection tube heating area | ㎡ | 45.29 |
| Heating area of economizer | ㎡ | 25.749 |
| Design efficiency(heavy oil fired) | % | 92.65 |
| Exhaust temperature(heavy oil fired) | °C | 123.56 |
| Fuel consumption (heavy oil fired) | kg/h | 131.8 |
| Heat carrier medium capacity in furnace | m³ | 1.2 |
| Medium flow speed in radiation area | m/s | 2.54 |
| Medium flow speed in convection area | m/s | 2.54 |
| Weight | Ton | 4 |
| Dimension | mm | 3710*1524*2150 |
| This is only the technical datasheet of our
1400kw(1200,000kcal)thermal oil boiler. For other models,please
contact shirley for details. (whatsapp/wechat/skype: +86
13783520217) |
Application fields
1. Chemical industry
2. In the fat industry
3. In the food industry
4. Textile printing and dyeing industry
5. Medical industry
6. Synthetic fiber industry
7. Paper industry
8. Plastic and rubber industry
9. Wood processing industry
10. Building materials industry
11. Fat and paint industry
12. Automotive Manufacturing
13. Soap detergent industry
14. Tar processing industry
15. Road construction project
