1 Ton - 20Ton Industrial Steam Boiler Wood Pellet Coal Fired Stove
Boiler
Overview of our coal biomass fired boiler
The DZL/DZH new water-fire tube boiler is a new eco-friendly and
energy-saving product co-developed by our company and famous Harbin
institute of Technology and director of Beijing Institute of Light
Boiler.
SZL series product has a double-drum offset hearth(D-type
layout),great apply for biomass fuel,environmental protection and
energy conservation,and is a key promoted product of national
energy-saving projects.
1. Boiler model: DZL/DZH/SZL
2. Boiler capacity: 1-20ton/h
3. Pressure:
1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)
4. Steam temperature: 184 °c,194°c, 204°c,226°c(As long as below
226°c,we can do it)
5. Fuel: coal,biomass,wood
6. Structure: horizontal water-fire tube, single drum
7. Type: There are three types. DZL chain grate stoker automatic
feeding fuel and removing dregs type. Another is DZH hand operated
moving grate type which needs labour to feed fuel and remove the
dregs.
SZL two drums water tube with automatic chain grate work high
efficiency.
8. Application:Medicine, chemical, light industry, textile,
building material, cultivation, food and beverage, plastic foam,
printing, dyeing and washing, rubber processing, paper
products,wood processing, hotel, clothing and leather manufacturer
etc.
Boiler technical parameter
| Boiler Model | Capacity | Pressure | Feed water temp. | Steam temp. | Active grate area | Exhaust gas temp. | Design efficiency | Fuel consump |
| t/h | MPa | ℃ | ℃ | ㎡ | ℃ | % | Kg/h |
| DZL1-1.0-AII | 1 | 1 | 20 | 184 | 1.85 | 157 | 80 | 118 |
| DZL2-1.25-AII | 2 | 1.25 | 20 | 194 | 3.4 | 163 | 80 | 238 |
| DZL4-1.25-AII | 4 | 1.25 | 60 | 194 | 5.18 | 180 | 80 | 472 |
| DZL6-1.25-AII | 6 | 1.25 | 60 | 194 | 7.55 | 166 | 80 | 685 |
| DZL10-1.25-AII | 10 | 1.25 | 105 | 194 | 12 | 151 | 80 | 1128 |
| DZL15-1.25-AII | 15 | 1.25 | 105 | 194 | 18 | 161 | 81 | 1698 |
| DZL20-1.25-AII | 20 | 1.25 | 105 | 194 | 22.9 | 150 | 81 | 2241 |
| DZL30-1.25-AII | 30 | 1.25 | 105 | 194 | 27.5 | 157.6 | 81 | 3380 |
| DZL40-1.25-AII | 40 | 1.25 | 105 | 194 | 34.5 | 162.2 | 81 | 4481 |

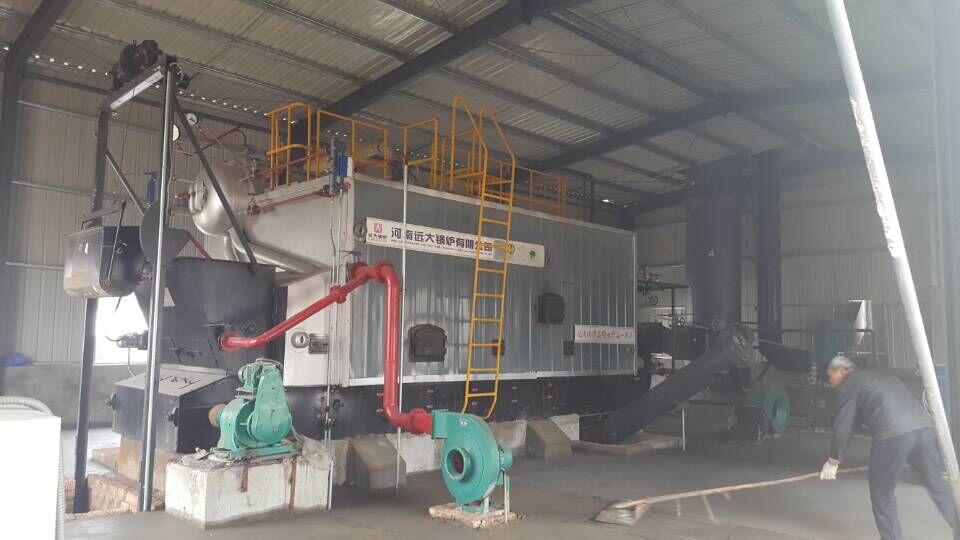

Boiler Installation pictures
