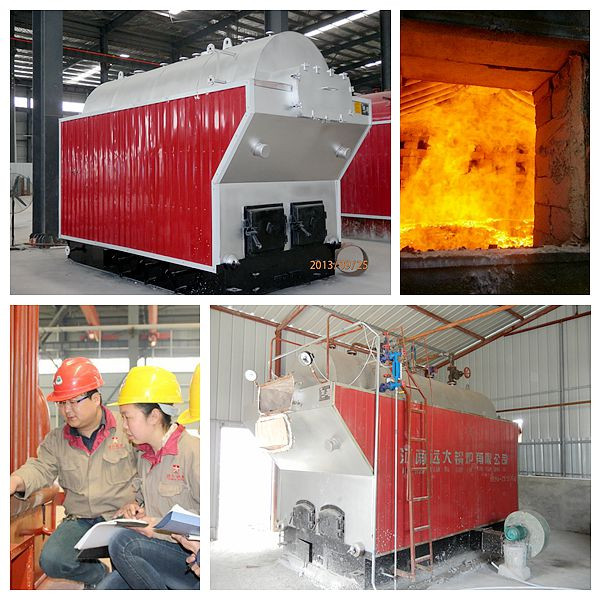

Hand Feeding Industrial Steam Boiler Wood Coal Water Tube Boiler
Introduction
DZH model boiler is a type of hand operate moving grate type which
needs labour to feed fuel and remove the dregs boiler.
1. Smoke and dust separator chamber
F:Separate smoke and dust according to inertia
P:reduce the original effluent concentration of soot
2. Optimized design CAD
F:Choose the best furnace from dozens of options
P:improve economical efficiency
3. Convex tube plate
Function:improve tube plate flexibility,so as to reduce the heating
stress of welded sew at the pipe end
Purpose:prevent tube plate cracking, cancel bracing,simplify the
structure
4. Large size of simple circulation loop drop pipe and lower set
box
F:Increase the flow rate of water on water cooling wall in order to
prevent subcooled boiling
P:To prevent pipe explosion,Increase the reliability of water cycle
5. Self support
F: cancel the steel frame
P: save steel material
Technical Parameter Table
| Boiler model | Rated thermal power | Rated pressure | Grate effective area | Exhaust gas temp. | Design efficiency | Fuel consumption | Delivery Mode |
| MW | MPa | ㎡ | ℃ | % | Kg/h |
| DZL0.7-0.7/95/70-AII | 0.7 | 0.7 | 1.85 | 165 | 80 | 110 | Package |
| DZL1.4-0.7/95/70-AII | 1.4 | 0.7 | 3.4 | 172 | 80 | 222 | Package |
| DZL2.8-0.7/95/70-AII | 2.8 | 0.7 | 5.18 | 155 | 80 | 432 | Package |
| DZL4.2-0.7/95/70-AII | 4.2 | 0.7 | 7.55 | 155 | 81 | 633 | Package |
| DZL5.6-1.0/95/70-AII | 5.6 | 1 | 9.34 | 171 | 80 | 855 | Assembled |
| DZL7-1.0/115/70-AII | 7 | 1 | 12 | 170 | 80 | 1068 | Assembled |
| DZL10.5-1.0/115/70-AII | 10.5 | 1 | 18 | 146 | 81 | 1587 | Assembled |
| DZL14-1.0/115/70-AII | 14 | 1.25 | 22.85 | 157 | 81 | 2116 | Assembled |
| DZL21-1.25/130/70-AII | 21 | 1.25 | 27.5 | 158 | 81 | 3160 | Assembled |
| DZL29-1.25/130/70-AII | 29 | 1.25 | 34.5 | 150 | 81 | 4327 | Assembled |
This is just part of the product parameters, if you want to know
more detailed parameters of the boiler, please feel free to contact
us. (whatsapp/wechat/skype: +86 13783520217)
