Wns Series 10 Ton Gas Fired Industrial Steam Boiler In Egypt Paper
Mill
1. Quick Details:
1.Model: WNS
2.Steam Capacity: 500kg/h-20ton/h
3.Design pressure:1.0Mpa(10bar), 1.25Mpa(13bar),
1.6Mpa(16bar),2.5Mpa(25bar)
4.Stem temperature:below 224 degree
5.Design fuel: natural gas, lpg, lng, cng, city gas, biogas,
methane gas, diesel oil, heavy oil, light oil, HFO fuel.
6.Structure: three pass fire tube wet back
7.Application: boiler for textile factory, rice mill, food
processing industry, garment factory, milk pasteurization, dairy
factory, printing and dyeing mill, medicine industry, food &
beverage industry, chemical industry, pharmaceutical factory, wood
processing industry, plywood factory, bitumen plant etc.
2. Unique features
1. Adopting the latest technology, it is designed with a combustion
chamber with large volume. It is equipped with a world-known
burner, making the combustion more sufficient and ensuring higher
efficiency and lower failure rate.
2. It adopts advanced corrugated furnace pipe structure, increasing
the heat surface area, and satisfying free expansion of the furnace
pipe after heating.
3.It uses a spirally corrugated tube, strengthening heat transfer
and eliminating welding stress.
4. It adopts wet back structure with high reliability and low
maintenance cost.
5. It has multiple protective functions of over-temperature,
over-pressure, water shortage, leakage detection and flame out,
ensuring safe and reliable operation.
3. WNS gas steam boiler technique parameter
| Boiler model | Capacity | Pressure | Feed temp. | Steam temp. | Fuel consump. | Thermal efficiency |
| Light oil | Heavy oil |
| t/h | Mpa | ℃ | ℃ | kg/h | kg/h | % |
| WNS1-1.0-Y(Q) | 1 | 1 | 20 | 184 | 65.5 | 67.3 | 91 |
| WNS 2-1.25- Y(Q) | 2 | 1.25 | 20 | 194 | 129.6 | 132.2 | 92 |
| WNS3-1.25-Y(Q) | 3 | 1.25 | 20 | 194 | 192 | 195 | 92.1 |
| WNS4-1.25- Y(Q) | 4 | 1.25 | 20 | 194 | 256 | 261.9 | 93 |
| WNS5-1.25- Y(Q) | 5 | 1.25 | 20 | 194 | 318 | 322 | 93 |
| WNS6-1.25- Y(Q) | 6 | 1.25 | 20 | 194 | 380 | 390.6 | 93.2 |
| WNS8-1.25- Y(Q) | 8 | 1.25 | 105 | 194 | 503 | 517 | 93.5 |
| WNS10-1.25- Y(Q) | 10 | 1.25 | 105 | 194 | 628 | 643 | 93.5 |
| WNS15-1.25- Y(Q) | 15 | 1.25 | 105 | 194 | 940 | 965 | 93.5 |
| WNS20-1.25- Y(Q) | 20 | 1.25 | 105 | 194 | 1250 | 1301 | 93.5 |
Note: the above parameter is our standard specification. Pls
contact Aileen@yuanda-boiler.com for your special requirments.
4. WNS gas steam boiler export project cases
| export to Egypt | WNS10-1.5-Y |
7MW /10ton Natural gas fired steam boiler export to Egypt
|
| export to Ghana | WNS1.5-1.0-Y |
1500kg natural gas fired steam boiler will work for customer's soap
factory
|
| export to Cambodia | WNS15-1.25-Y(Q) |
Gas oil fired steam boiler is very popular, Vietnam customer uses
it for the clothes factory, Ethiopia customers uses it for food
processing factory, Bangladesh customer uses it for the milk
processing factory, African customer use it for the wood processing
factory, etc.
|
| export to Tanzanian | WNS10-1.25-Y(Q) |
| export to Saudi Arabia | WNS8-1.25-Y(Q) |
| export to New Zealand | WNS0.5-1.0-Q |
Natural gas fired steam boiler will work for honey making factory,
our New Zealand customer bought one 500kg steam boiler for food
making industry.
|
| export to Bangladesh | WNS4-1.25-Y(Q) WNS1-1.0-Y(Q) |
Fire tube steam boiler, fuel can be natural gas,lpg,cng,light oil,
heavy oil. This model boiler can be used for textile factory,very
convenient and easy-operation. Our boiler can ensure 100% running
safety and no-problem working. Some of of customer use it for food
making, like rice mill, wine factory, sauce making factory,etc.
There are many production technology process, need steam boiler to
carry out.
|

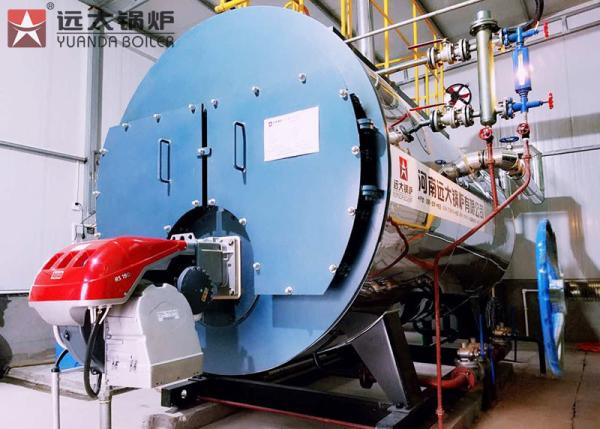

5. Project Pictures
6. Why choose Yuanda boiler:
1. Founded in 1956, Grade-A boiler manufacturer, international
well-known brand, we have cooperated with more than 12000 customers
all over the world.
2. With 62 years experience in boiler design, technique,
production, installation and operation.
3. Annual production capacity: industrial boilers up to 5000t/h and
various pressure vessels up to 6000t/h.
4. Trade capacity: Yuanda boilers have been exported to more than
80 countries. China Top 5 export sales in boiler industry.
