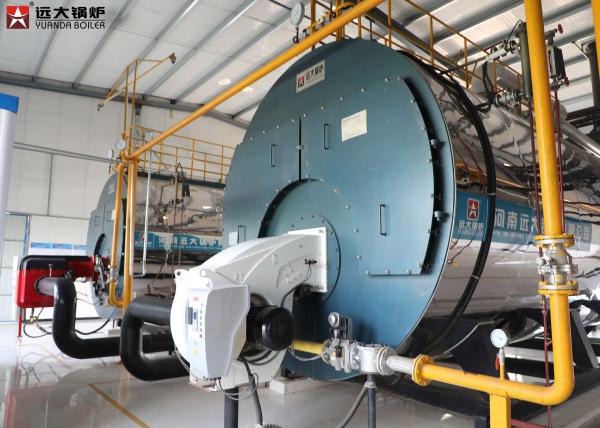

10 Ton Gas Industrial Steam Boiler Three Pass Efficient Gas Steam
Boiler
Industrial Steam Boiler Product features
Industrial Steam Boiler is horizontal three pass fire tube wet back
full automatic steam boiler. It normally suitable for 500kg to
20ton/h capacity, use all kinds of gas and oil fuels,such as
natural gas, lpg,lng,cng,city gas,biogas, diesel oil,heavy oil.
1. Model:WNS
2. Capacity:500kg/h-20ton/h
3. Design pressure:1.0Mpa(10bar), 1.25Mpa(13bar),
1.6Mpa(16bar),2.5Mpa(25bar)
4. Stem temperature:below 224 degree
5. Design fuel:natural gas, lpg,lng,cng,city gas,biogas, diesel
oil,heavy oil
6. Structure: three pass fire tube wet back
Technical Parameter of Industrial Steam Boiler
| Boiler model | Capacity | Pressure | Rated Feed temp. | Rated Steam temp. | Thermal efficiency | Weight | Dimensions |
|
| t/h | Mpa | ℃ | ℃ | % | ton | mm |
| WNS1-1.0-Y(Q) | 1 | 1 | 20 | 184 | 91 | 4.3 | 3561×1690×1910 |
| WNS 2-1.25- Y(Q) | 2 | 1.25 | 20 | 194 | 92 | 7.2 | 4111×1950×2199 |
| WNS3-1.25-Y(Q) | 3 | 1.25 | 20 | 194 | 92.1 | 8 | 4330×2248×2564 |
| WNS4-1.25- Y(Q) | 4 | 1.25 | 20 | 194 | 93 | 9.6 | 4732×2150×2448 |
| WNS5-1.25- Y(Q) | 5 | 1.25 | 20 | 194 | 93 | 12.5 | 5970×2360×2796 |
| WNS6-1.25- Y(Q) | 6 | 1.25 | 20 | 194 | 93.2 | 16.5 | 5500×2600×2990 |
| WNS8-1.25- Y(Q) | 8 | 1.25 | 105 | 194 | 93.5 | 24.8 | 6450×2800×3200 |
| WNS10-1.25- Y(Q) | 10 | 1.25 | 105 | 194 | 93.5 | 26.8 | 6800×2900×3394 |
| WNS15-1.25- Y(Q) | 15 | 1.25 | 105 | 194 | 93.5 | 38 | 7150×3200×3540 |
| WNS20-1.25- Y(Q) | 20 | 1.25 | 105 | 194 | 93.5 | 55 | 8200×3400×3826 |
Industrial Steam Boiler Application Fields
1. Medicine
2. Chemical
3. Light industry
4. Textile
5. Building material
6. Cultivation
7. Food and
8. Beverage
9. Plastic foam
10. Printing,
11. Dyeing and washing
12. Rubber processing
13. Paper products
14. Wood processing
15. Hotel
16. Clothing and leather manufacturer etc.
Industrial Steam Boiler Running Advantages
(1) Our boiler design big size water volume,the steam output is
stable and steam quality is good.
(2) Design special steam water separator,reduce steam humidity and
improve steam quality.
(3) Adopt bog size whole corrugated furnace,big heating
area,satisfy the free expansion of boiler, improve the boiler
efficiency.
(4) Explosion proof door design,prevent explosion, reduce the
damage to the boiler, improve the safety of boiler.
(5) New type refractory material,solidification strong, long using
life,which will not fall off after shaking.
(6) 61 years boiler manufacturing experience, mature design and
production team.
(7) Continuous feeding water vertical multistage centrifugal
stainless steel pump,no need manual adjustment and at same time,
ensure the stable&safety running of boiler.
