Double Drums Industrial 2 t/h 3 t/h Biomass Steam Boiler Price
14bar

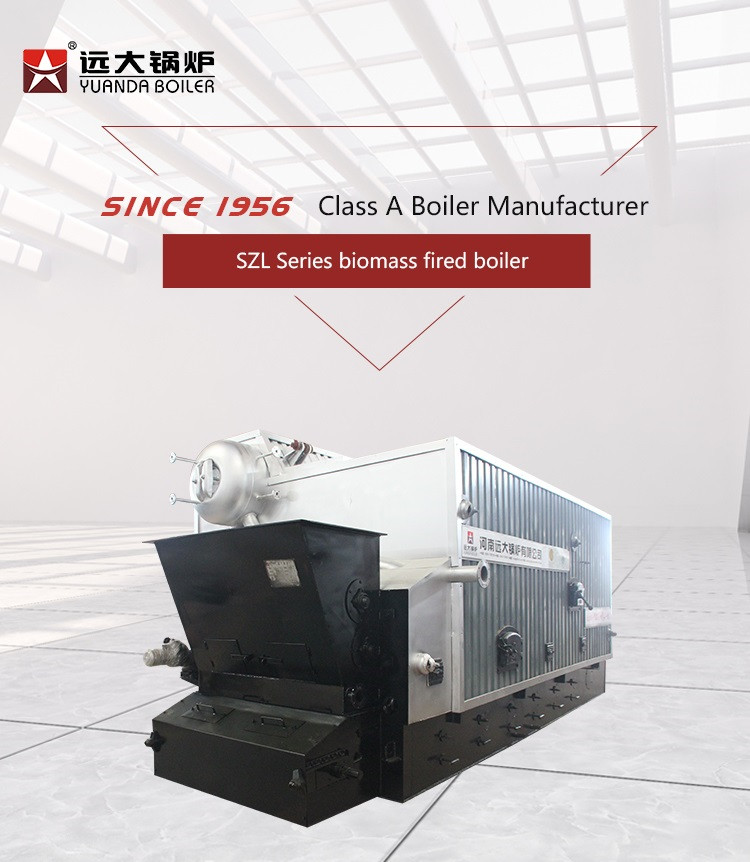

SZL series product are double drum offset furnace structure("D"type
series), high technology,environmental and energy-saving, this
products series Won the second prize of national science and
technology progress award,Golden lion at Singapore new products
expo,it is key-promoting products and energy-saving projects in
China.
It normally suitable for 1ton to 20ton/h capacity,use biomass pellet,wood pellet, wood chip, rice huskrice husk,straw,
cashew, sawdust, paddy ,peanut,palm oil kernel shell,cashew nut and
all other kinds of solid fuel.
Advantages of biomass steam boiler design
1. Energy conservation
2. High efficiency
3. Environment friendly
4. Low fuel consumption
Boiler technical parameter
| Model | Capacity | Pressure | Feed water temp | steam temp | Boiler efficiency | Fuel consump. | Weight | Delivery Mode |
| t/h | Mpa | ℃ | ℃ | % | kg/h | Ton |
| SZH2-1.25/2.5-AII | 2 | 1.25/2.5 | 20 | 194/226 | 81 | 225/228 | 17/18.5 | Package Bolier |
| SZH4-1.25/2.5-AII | 4 | 1.25/2.5 | 20 | 194/226 | 81 | 450/462 | 22/24.8 |
| SZL2-1.25/2.5-AII | 2 | 1.25/2.5 | 20 | 194/226 | 81.6 | 223/227 | 20/25 |
| SZL4-1.25/2.5-AII | 4 | 1.25/2.5 | 20 | 194/226 | 81.6 | 447/453 | 28/29 |
| SZL6-1.25/2.5-AII | 6 | 1.25/2.5 | 20 | 194/226 | 81.6 | 671/684 | 38/42 |
| SZL8-1.25/2.5-AII | 8 | 1.25/2.5 | 20 | 194/226 | 81.8 | 781/803 | 52 |
| SZL10-1.25/2.5-AII | 10 | 1.25/2.5 | 20 | 194/226 | 82 | 1113/1127 | 68 | Assembled Boiler |
| SZL15-1.25/2.5-AII | 15 | 1.25/2.5 | 20 | 194/226 | 82.3 | 1663/1686 | 30 |
| SZL20-1.25/2.5-AII | 20 | 1.25/2.5 | 20 | 194/226 | 82.3 | 2218/2246 | 40 |
Application industry
1. Plastic & Rubber industry
Industrial boiler can be used for calendering, banburying, and
vulcanization in plastic rubber industry.
2. Printing Industry
Industrial boiler can be used for recombination and laminating in
printing industry.
3. Wood Processing
Steam is significant for the processes of preservation, drying,
digestion, and hot processing. While, the hot oil also could be
used as the heat transfer medium instead of stem. Thermal oil
heater is a kind of energy saving boiler with high working
temperature (320℃) and low working pressure (0.8Mpa). Within recent
years, thermal oil heater is very popular in wood industry.
4. Textile Industry
Industrial boiler plays a significant role in the textile industry,
the steam boiler is used for different processes, such as dyeing
and drying, and support the use of resing finishing stenter, dyeing
machine, drying room, and mixing mill, etc. The needed temperature
of textile process is 60~180℃.During the process of dyeing and
drying in textile industry, steam plays an significant role, the
industrial boilers is used combined with resing finishing stenter,
dyeing machine, drying room and mixing mill. The temperature range
is 60~180℃, thermal oil boiler is available for textile industry,
which achieves high working temperature (<330℃) under low
working pressure (<10 bar).
