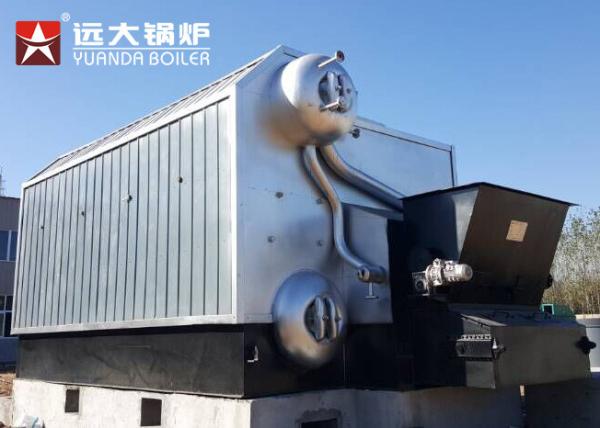

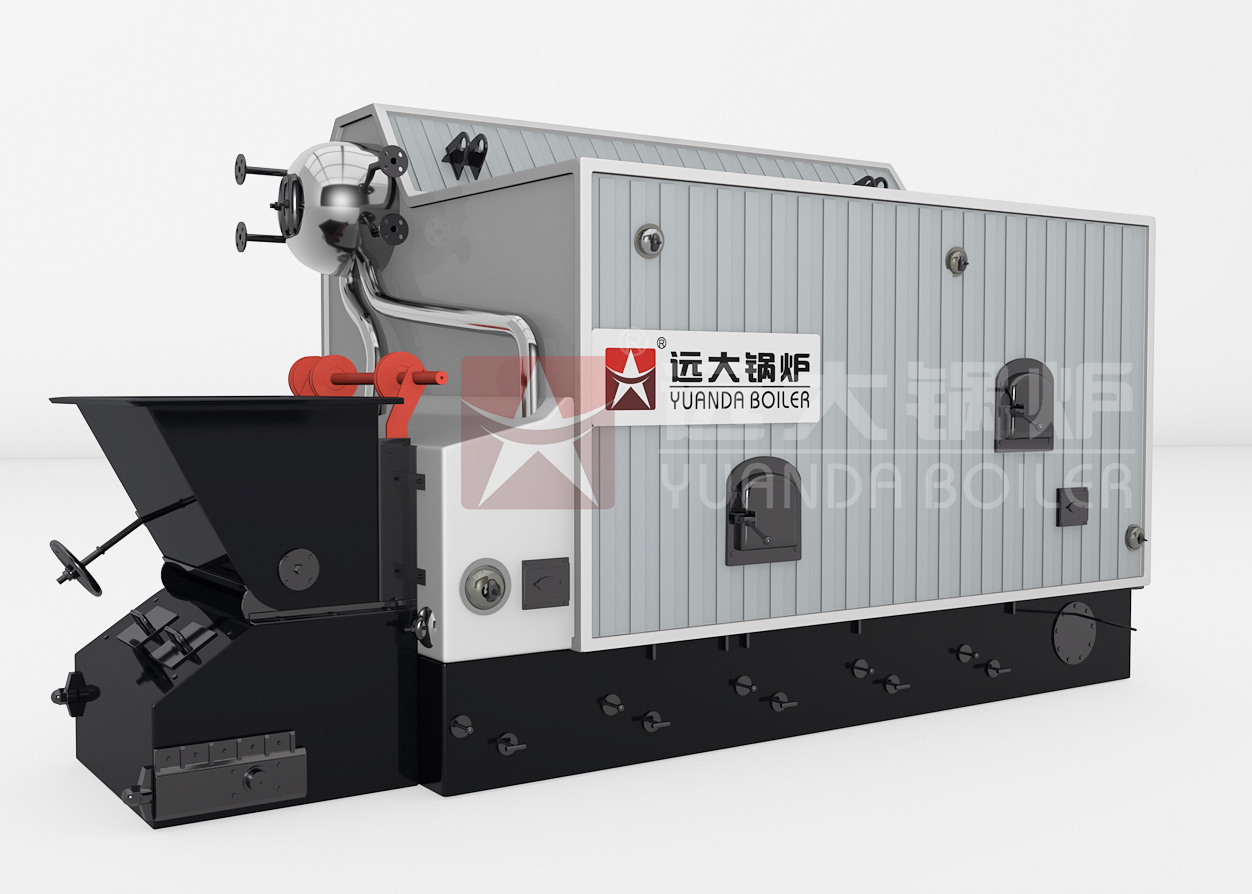

Best Price Industrial 1-20 Metric Ton Coal Biomass Steam Boiler

Biomass Steam Boiler is double drum offset furnace structure (D-type series), high technology,environmental and energy-saving,this products series Won the second peize of national science and technology progress award,Golden lion at Singapore new products expo,it is key-promoting pruducts and energy-saving in China.
Biomass Steam Boiler Main characteristic
1. Boiler Applied fuel: biomass pellet, wood pellet, wood chip, rice husk,straw, sawdust, paddy, peanut and all other kinds of solid fuel.
2. Boiler Rated capacity: packaged 1 to 8 t/h, assembled 10-20 t/h
3. Boiler Model: SZL
4. Boiler Structure: automatic chain grate, water tube, 3-pass boiler, double drum
5. Boiler efficiency: 83-86%
6. Boiler Output: steam
7. Boiler Rated steam pressure: 1.0Mpa(10bar), 1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar).
8. Boiler Rated steam temperature: 184°C, 194°C,204°C,225°C

Biomass Steam Boiler Core technology
1. Whirlwind burning chamber structure.
2. Indenpend wind chamber structure.
3. Large furnace capacity,wid biomass fuel adaptability.
4. Front-rear water-cooled arch design.
5. Membrane water wall construction.
6.Aluminum silicate insulation.
Biomass Steam Boiler Technique parameter

Biomass Steam Boiler Application

1. Food industry: steam can be used for food disinfection, cooking; Wine industry need to use steam;
2. Petrochemical industry: steam can be used to heat oil, to strengthen the liquidity of oil;
3. Foam, furniture production: the steam can be used for producing foam. When making furniture, wood needs to be dried with steam;
4. Filling block production:steam used for drying the aerated brick;
5. Washing ironing industry: generally used in laundry, including dry cleaning machines, dryers, washing machines, dehydration machines, ironing machines, iron and other equipment supporting the use;
6. Packaging machinery industry: labeling machines, sets of standard machine;
7. Bio-chemical industry: fermentation tank, reactor, sandwich pan, mixer, emulsifier and other equipment;
8. Food machinery industry: tofu machine, steamer, sterilization tank, packaging machines, paint equipment, sealing machines and other equipment;

Henan Yuanda Boiler Co., Ltd., established in 1956, locates in Xihua county, Henan province, the central part of China. We are professional manufacturer and supplier for industrial boilers, with over 60 years' experience in boiler design, technique, production, installation and operation. Our company is one of the leading enterprises which first obtained the national boiler manufacturing license in China.

Yuanda devoted to boiler production and sales business, sell boilers at home and aboad. So far, we have sell boilers to more than 80 countries and regions,such as Pakistan, India, Sri Lanka in South Asia, Philippine, Indonisia, Malaysia, Thailand, Vietnam, Myanmar, Cambodia in South-east Asia, Saudi Arabia, UAE in Middle East, Tanzania, Egypt, Nigeria, Kenya, South Africa in Afica, Russia, Ukraine in Eruope and Mexico, Chile in South America. Our products have gained excellent reputation all over the world.

Our main products are:
(1) WNS series gas oil fired boiler
(2) DZL / DZH series coal wood fired boiler
(3) SZL series coal biomass boiler
(4) YY (Q)W series Gas oil fired thermal oil boiler
(5) YLW series coal biomass fired thermal oil boiler

(6) ZWNS series gas oil fired vacuum hot water boiler
(7) All kinds of pressure vessels

Yuanda Boiler is committed to providing industrial boilers with higher thermal efficiency, lower fuel consumption and more environmentally friendly.

We look forward to making a brilliant future with you.
