Horizontal Industrial Thermal Oil Boiler 700 Kw Thermic Fluid Heater

Boiler Advantages

1. Three pass coil pipes design, thermal oil goes through the coil pipes and fire in the furnace(fire is surrounded by oil), which makes the boiler has big radiation heating area, highly improves the boiler efficiency and preventing deformation of boiler shell in high temperature heating.
2. Unique heating surface of the back of boiler--smoke turning around room is wet back design(smoke turning around room is surrounded with oil), which avoids dry heating of tube sheets and reduce heat loss.
3. Unique coil integration process, no gaps between coils, then Smoke will not be chaotic and short-circulate. Smoke flows long and smooth, makes the boilers heating enough and efficiency high.
4. Energy saving device design(air preheater, waste heater boiler or economizer is designed behind the boiler), which makes the exhaust temperature low and improves 10% of boiler efficiency.
5. Double-layer aluminum silicate insulation, makes the temperature of shell surface not more than 40℃,which is energy saving and efficient.
6. Dislocation double sealing slot design,secondary leakage prevention, which seals very tight and avoid leakage.
7. Fast-setting and high-strength refractory building materials, strong solidification, long life cycle, and not easy to shake off.
8. Integrated wiring device(Junction box and wire groove), so that wire-controlled connection is more convenient, maintenance is more simple and more beautiful after installation.
9. Outputting oil tank external design,slow down the rate of carbonization of fat and avoid accidents.
10. Roundness treatment for edges and corners of packing panels, which can prevent incidental injury accident in maintenance.

Boiler pictures

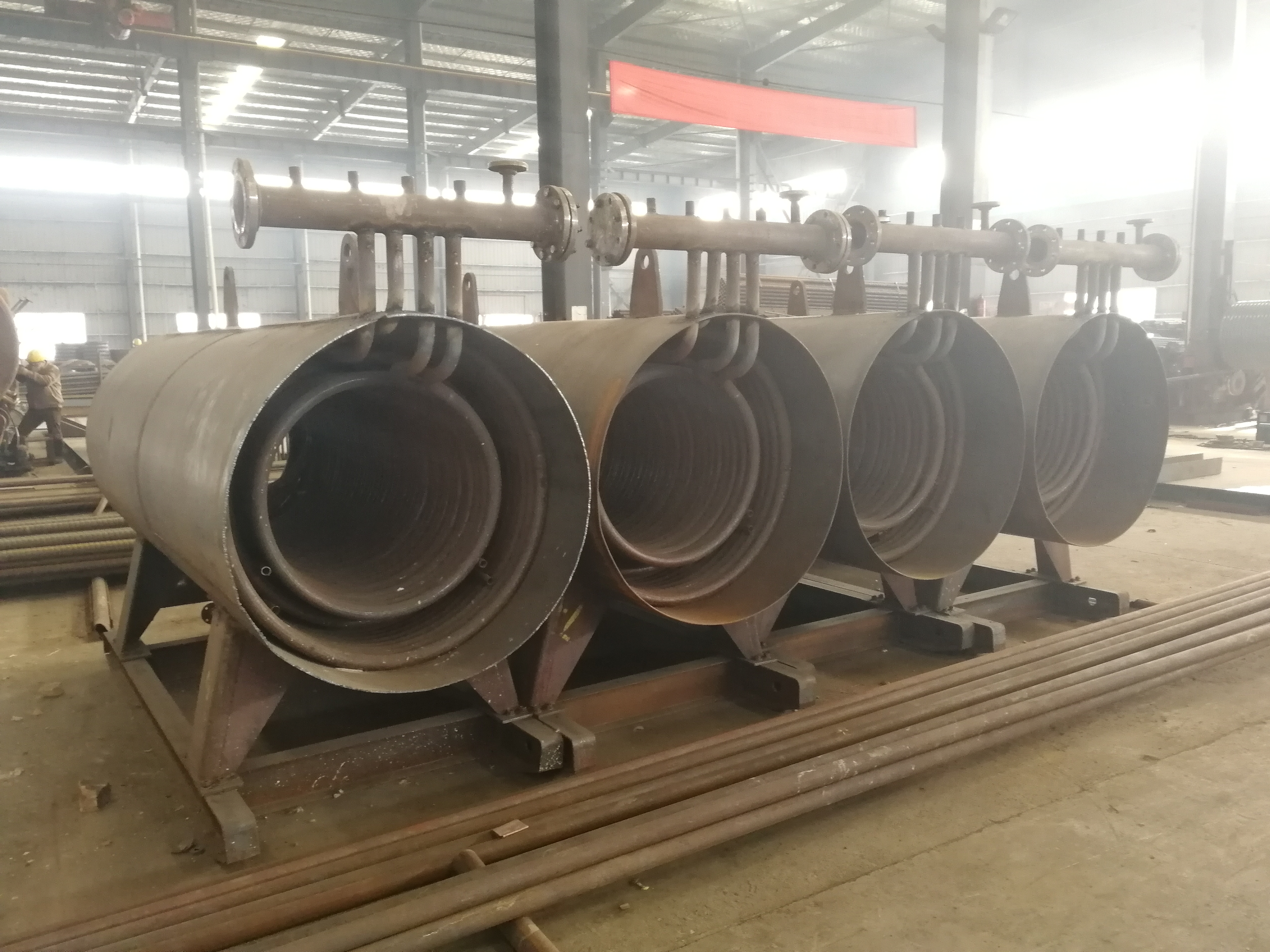

1. Semi-finished boiler

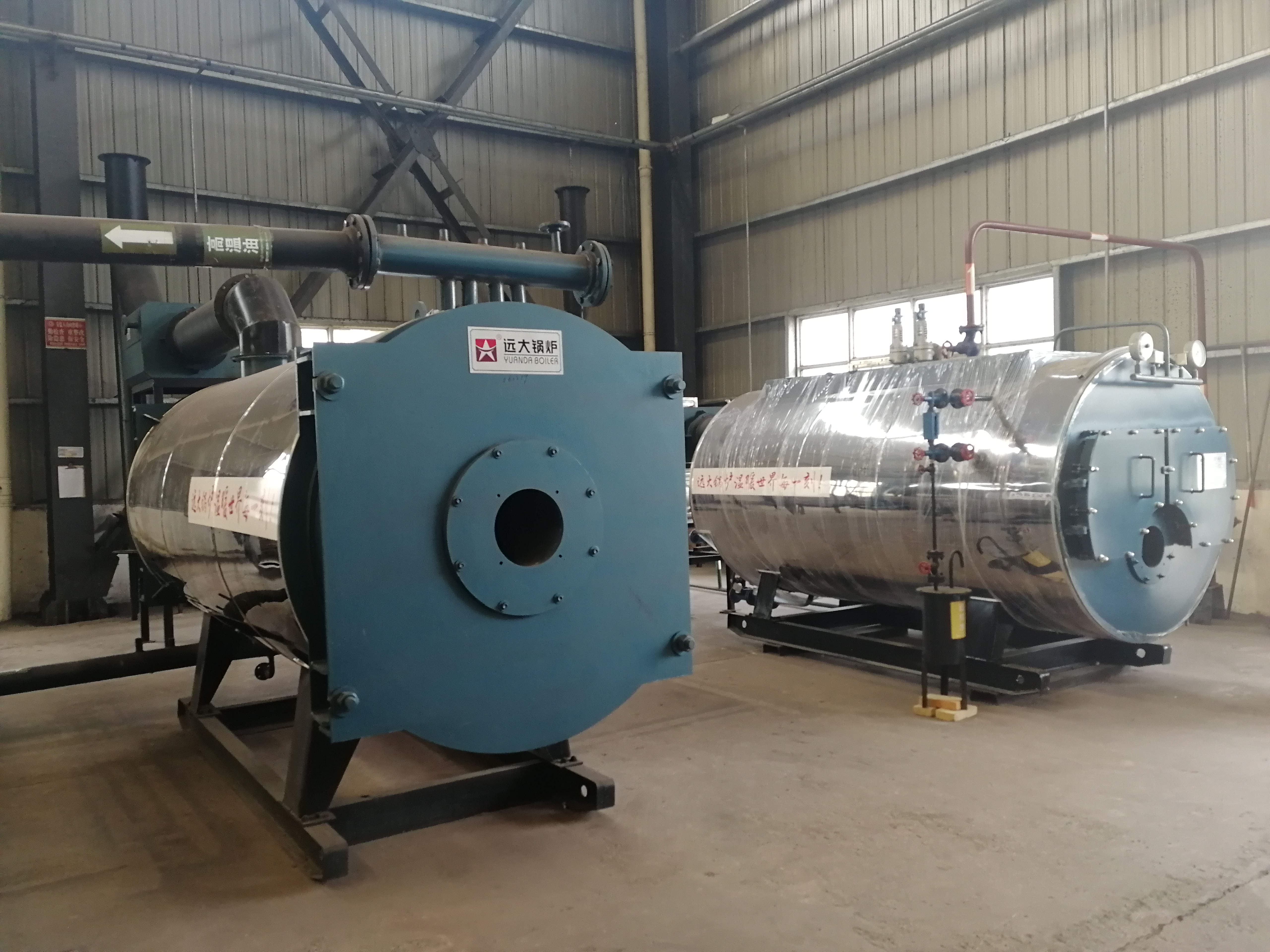

2. Thermal oil heater

Boiler Parameter

This is only the technical datasheet of our 1400kw(1200,000kcal)thermal oil boiler. For other models,please contact shirley for details.

Henan Yuanda Boiler Co., Ltd., established in 1956, locates in Xihua county, Henan province, the central part of China. We are professional manufacturer and supplier for industrial boilers, with over 60 years' experience in boiler design, technique, production, installation and operation. Our company is one of the leading enterprises which first obtained the national boiler manufacturing license in China.

Yuanda devoted to boiler production and sales business, sell boilers at home and aboad. So far, we have sell boilers to more than 80 countries and regions,such as Pakistan, India, Sri Lanka in South Asia, Philippine, Indonisia, Malaysia, Thailand, Vietnam, Myanmar, Cambodia in South-east Asia, Saudi Arabia, UAE in Middle East, Tanzania, Egypt, Nigeria, Kenya, South Africa in Afica, Russia, Ukraine in Eruope and Mexico, Chile in South America. Our products have gained excellent reputation all over the world.

Our main products are:
(1) WNS series gas oil fired boiler
(2) DZL / DZH series coal wood fired boiler
(3) SZL series coal biomass boiler
(4) YY (Q)W series Gas oil fired thermal oil boiler
(5) YLW series coal biomass fired thermal oil boiler

(6) ZWNS series gas oil fired vacuum hot water boiler
(7) All kinds of pressure vessels

Yuanda Boiler is committed to providing industrial boilers with higher thermal efficiency, lower fuel consumption and more environmentally friendly.

We look forward to making a brilliant future with you.
