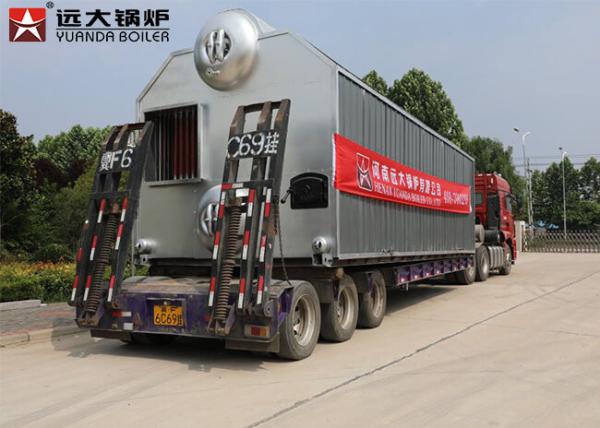

Medium Pressure 1500 hp Large Rice Husk Burning Steam Boiler
Rice husk steam boiler introduction
SZL series product has a double-drum offset hearth (D-type layout),
great apply for biomass fuel, environmental protection and energy
conservation, and is a key promoted product of national
energy-saving projects.
1. Model: SZL
2. Capacity: 1Ton/h-30Ton/h
3. Design pressure: 1.0Mpa(10bar), 1.25Mpa(13bar),
1.6Mpa(16bar),2.5Mpa(25bar)
4. Design fuel: Biomass,pellet,wood chips,rice husk,sawdust,peanut
shell,palm oil shell,coconut shell,straw,corncob,bagasse,etc.
Best advantages of rice husk steam boiler
1. Stable operation, low cost
2. Strong adaptability for fuels
3. High automation, easy operation
4. Strong output, great overload capacity
5. External thermal insulation material,low heat loss
6. Large combustion chamber, high combustion efficiency
7. Dust removal equipment, clean and environmental protection
Design features of rice husk steam boiler
1. Design the cyclone chamber inside the chamber of the stove
When the high temperature smoke through the cyclone chamber,smoke
rotate with high speed and burn thoroughly.Improve the heat
efficiency of boiler,the big dust settle down ,achieve the result
of secondary combustion and first dust removal.
Energy conservation,high efficiency,environment friendly
This design obtains national patient
2. Separate wind chamber structure
Make air regulation sensitive and make wind uniformly in landscape
orientation in the reliable longitudinal wind chamber.
Resolve the wind plug,wind channeled,partial burn phenomenon,
The design obtains national patent.
Technical Parameters of rice husk steam boiler
| Model | Capacity | Pressure | Rated Feed water temperature | Rated steam temperature | Active grate area | Boiler heating area | Boiler efficiency |
| t/h | Mpa | ℃ | ℃ | ㎡ | ㎡ | % |
| SZH2-1.25/2.5-AII | 2 | 1.25/2.5 | 20 | 194/226 | 2.78 | 69.5 | 81 |
| SZH4-1.25/2.5-AII | 4 | 1.25/2.5 | 20 | 194/226 | 4.5 | 119.2 | 81 |
| SZL2-1.25/2.5-AII | 2 | 1.25/2.5 | 20 | 194/226 | 3.1 | 64.6 | 81.6 |
| SZL4-1.25/2.5-AII | 4 | 1.25/2.5 | 20 | 194/226 | 4.6 | 115.3 | 81.6 |
| SZL6-1.25/2.5-AII | 6 | 1.25/2.5 | 20 | 194/226 | 7.3 | 136.3 | 81.6 |
| SZL8-1.25/2.5-AII | 8 | 1.25/2.5 | 20 | 194/226 | 10.4 | 173 | 81.8 |
| SZL10-1.25/2.5-AII | 10 | 1.25/2.5 | 20 | 194/226 | 11.8 | 233 | 82 |
| SZL15-1.25/2.5-AII | 15 | 1.25/2.5 | 20 | 194/226 | 17.7 | 307.3 | 82.3 |
| SZL20-1.25/2.5-AII | 20 | 1.25/2.5 | 20 | 194/226 | 20.8 | 725.2 | 82.3 |
Foreign Projects of rice husk fired boiler
Vietnam Philippines Bangladesh Sri Lanka
| SZL2-1.25-T | Coal fired steam boiler is very popular, Vietnam customer uses it
for textile industry, Philippines customers uses it for wood
processing factory, Bangladesh customer uses it for feed processing
factory, Sri Lanka customer use it for paper processing factory,
etc. |
| Honduras | DZL8-1.25-T | DZL model boiler is a coal/biomass fired steam boiler, high quality
steam output for usage, single drum with water-fired tube
structure, Our Hoduras customer need the 8 ton/hour steam boiler
into using. This model boiler is one with chain grate, automatic
fuel feeding and running, working life can reach 25 years,
sufficient steam supply. |
Philippines
| DZL2-1.25-T | 2ton wood chips fired steam boiler export to Philippines |
| Vietnam | SZL6-1.25-T SZL4-1.25-T |
Biomass is the renewable energy, it's a excellent fuel to fire as
for some area where has rich biomass resource. SZL model boiler,
two drums with water tube , there is large furnace for fuel
burning, improve thermal efficiency. Biomass fuel can be wood
chips, bagasse, ricehusk, peanut shell, corncob,etc. SZL model
boiler is available to 1ton-40ton steam output per hour.
|
Rice husk fired steam boiler application
Food Industry Industry steam boiler for food & beverage industry is used in the
processes of distillation, sterilization, disinfect, extraction,
drying, and curing, etc. The boiler should be clean and
environmental protection, so, it is better to use the clean energy
as the fuel, such as natural gas, biomass fuel, and electricity.
The suitable boiler could be horizontal type oil gas fired fire
tube boiler, biomass fired chain grate water tube boiler. During
the process of distillation, disinfect, drying, sterilization and
curing in food processing industry, industrial steam boiler is the
significant heating equipment.
|
Brewery/Brewhouse In brewery, steam is used for drying green malt,
gelatinizing/saccharifing raw materials, boiling wort, fermenting
beer, and pasteurizing bottles. Otherwise, hot water is also used
for sanitization. Generally, the steam boiler with 0.5ton~2ton
capacity is enough for a brewery, while, based on the production
ability, the steam capacity is a little different. Yuanda Boiler
provides various models of industrial steam boiler and hot water
that necessary to the brewery. |
Sugar Mill In sugar mill, steam plays a significant role for the processes of
heating, gelatinization, and saccharify. The temperature needed is
from about 30℃ to 80℃.There is a heating equipment under the mash
kettle, steam enter into the heating equipment and then heat the
raw material in mash kettle. Steam boiler is used for heating,
gelatinization, and saccharify, etc. Heating equipment is equipped
under mash kettle, and then steam produced by boiler enter into the
heating equipment, and then heat the raw materials for starch
hydrolysis.
|
Rice Mill In rice mill, industrial steam boiler is used for starch
liquidation and pasting. The needed steam pressure is between
0.3MPa and 0.6MPa. The best fuel for steam boiler is rice husk,
which can save cost. Yuanda Boiler products different types of rice
husk boilers, including both horizontal type and vertical type
boilers with chain grate, moving grate, fixed grate, and
reciprocating grate.
|
Textile Industry Industrial boiler plays a significant role in the textile industry,
the steam boiler is used for different processes, such as dyeing
and drying, and support the use of resing finishing stenter, dyeing
machine, drying room, and mixing mill, etc. The needed temperature
of textile process is 60~180℃.
Yuanda boiler developed a wide range of industrial boilers that
could be used for textile industry. During the process of dyeing
and drying in textile industry, steam plays an significant role,
the industrial boilers is used combined with resing finishing
stenter, dyeing machine, drying room and mixing mill. The
temperature range is 60~180℃, thermal oil boiler is available for
textile industry, which achieves high working temperature
(<330℃) under low working pressure (<10 bar). Except hot oil
boiler, oil gas fired steam boiler and biomass water tube steam
boiler is also suitable for textile factories.
|
Paper Processing Industry In paper processing industry, there are many processes (drying,
corrugating, boiling, etc.) that need steam. For example, steam is
necessary for drying, after squeezing, the paper still contain a
large amount of water (53%~70%), then steam boiler is used for
drying paper, and combine used with the cast iron dryer. |
Wood Processing Industry In wood industry (plywood mill, carboard factory, fiberboard,
etc.), steam is significant for the processes of preservation,
drying, digestion, and hot processing. While, the hot oil also
could be used as the heat transfer medium instead of stem. Thermal
oil heater is a kind of energy saving boiler with high working
temperature (320℃) and low working pressure (0.8Mpa). Within recent
years, thermal oil heater is very popular in wood industry.
|
