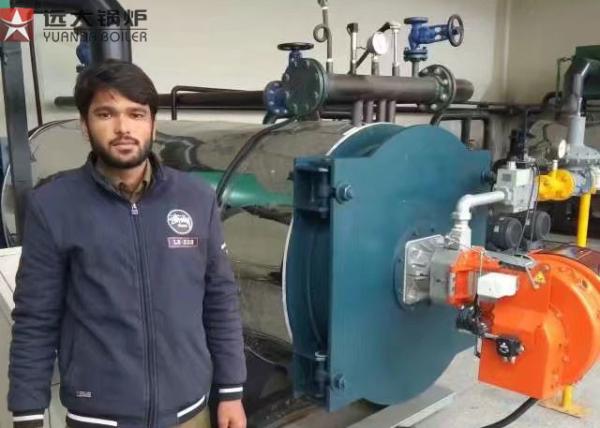

YYQW 2 Ton Gas Oil Fired Thermic Oil Boiler For Plastic Tape
Factory Pakistan
Thermal oil boiler introduction
YY(Q)W series thermal oil boiler is designed base on the forced
circulation theory, thermal conduction oil runs as the medium and
provides high temperature at the low pressure. Available fuel: gas,
oil, diesel, heavy oil, lpg, cng, dual fuel.
YY(Q)W series of organic heat carrier boiler is quick-fitting
forced circulation fuel oil(gas)boiler,this series boiler's is
compact structure,the heating area is constituted by closed coil
pipes from inside(or internal and external),inside coil pipes are
the radiation heating surface.
Thermal oil boiler systerm:
Advanategs Thermal Oil Boiler Design
1.It is easy and convenient to install the boiler,only setting the
boiler on the foundation.
2.Heating surface is formed by round coilers,sufficient
arrangement,reducing thermal load of tubes surface to ensure
safety.
3.Furnace dimensions is matching with the combustion flame,positive
pressure combustion,high radiation heat exchange efficiency.
4.Boiler structure is compact,saving the floor area of boiler room.
5.An air pre-heater or heat recovery boiler is placed behind the
boiler to improve the thermal efficiency.
Technical parameters table
| Model | Rated Thermal Power (MW) | Rated Working Pressure (Mpa) | Rated Outlet Temperature (℃) | Heat Efficiency (%) | Fuel Consumption |
| Gas | Oil | Gas m³/h | Oil Kg/h |
| YY(Q)W-700Y(Q) | 0.7 | 0.8 | 320 | 92.93 | 93.16 | 84.26 | 69.1 |
| YY(Q)W-1400Y(Q) | 1.4 | 0.8 | 320 | 91.41 | 91.65 | 169.11 | 138.78 |
| YY(Q)W-2100Y(Q) | 2.1 | 0.8 | 320 | 93.91 | 94.17 | 259.6 | 212.52 |
| YY(Q)W-3000Y(Q) | 3 | 0.8 | 320 | 92.08 | 92.57 | 385.16 | 313.41 |
| YY(Q)W-3500Y(Q) | 3.5 | 0.8 | 320 | 92.99 | 93.3 | 431.92 | 353.31 |
| YY(Q)W-4200Y(Q) | 4.2 | 1.1 | 320 | 94.2 | 94.54 | 516.38 | 422.57 |
| YY(Q)W-7000Y(Q) | 7 | 1 | 320 | 96% | 96.24 | 857.7 | 702.12 |
The listed technical parameters are for reference only and can be
designed according to different requirements of users.
Application use industry
1. Wood processing industry: Drying and forming of beaver board,
shaving board, laminated sheet, etc.
2. Building industry: Asphalt dissolution, concrete heating tank,
waterproof material, felt production, etc
3. Textile printing and dyeing Industry: Heat setting, textile
printing, ageing, drying, etc.
4. Plastic and rubber industry: Hot pressing, calendering,
extrusion, vulcanization, artificial leather processing, etc.
5. Chemical industry: Polymerization and condensation reaction,
distillation, rectification, concentration, evaporation, fusion
6. Oil production industry: Decomposing, deodorization, oil acid
distillation, hydrogenation and esterification reaction, etc
Lear more pls download: YYQW
Series Gas Oil Thermal Oil Boiler.pdf
After sales service
1. One year warranty with full life maintainance for the whole
system.
2. We can send our engineers/technicians for installation of entire
production line . Should make sure the safety of our engineers.
3. After one year, we can help you to maintain the machine and the
accessories are provided only one the cost price.
4. Every 3 year , we can help to overhaul the machine
freely(labor).
5. Free production technology and process configuration.
6. We can help you to design the product line , workshop and
provide turn-key project.
