Automatic 7000 kw Heavy Oil Fuel Thermal Heat Oil Boiler with price

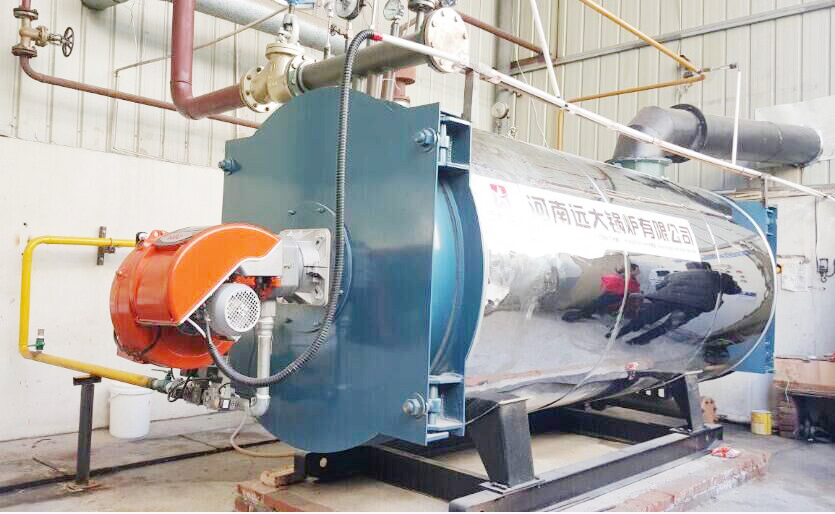

Thermal oil boiler introduction
YY (Q) W series thermal oil boiler system is a kind of thermal fluid heater which use gas or oil as fuel.
Thermal oil boiler is a new type of special boiler with low
pressure and high temperature working characteristics. Thermal oil
boiler uses hot oil as heat transfer medium, hot oil circulation
pump to make the medium has a forced circulation, then deliver the
heat to heating need equipment and then go back to the heating
furnace.
Advanategs Thermal Oil Boiler Design
1. Three pass coil pipes design.
2. Wet back structure.
3. Energy saving device design.
4. Outputting oil tank extemal design.
5. Dislocation double sealing slot design,seals very tight and
avoid leakage.
6. Original imported burner.
Thermal Oil Boiler Technical parameters table
| Design parameter | Unit | Date |
| Rated power supply | Kw | 3000 |
| Working medium | | L-QD340 thermal conductive oil |
| Circulating oil | m3/h | 160.7 |
| Maximum working pressure | MPa | 0.8 |
| Heating surface | radiation | m2 | 21.5 |
| convection | m2 | 124 |
| Economizer heating surface | m2 | 63.9 |
| Thermal oil flow rate | m/s | 3.12 |
| Furnace media capacity | m3 | 2.24 |
| Thermal efficiency | η | 92.08%(gas)92.57(oil) |
| Auxiliary power | KW | 65.5 |
| exhaust temperature | ℃ | 142.26(138.3) |
| Rated oil temperature | ℃ | 290 |
| Fuel consumption | Kg/h | 385.16Nm3/h(gas)313.41Kg/h(oil) |
| Maximum transport size | mm | 5600×2400×3170 |
The listed technical parameters are for reference only and can be
designed according to different requirements of users.
Thermal Oil Boiler Application use industry
1. In the road construction project, it is mainly used for heating
and insulation of asphalt heating, dissolving, asphalt storage
tank, asphalt concrete and emulsified asphalt.
2. In the building materials industry, the heat transfer oil
furnace is mainly used for gypsum board drying, concrete member
solidification protection and prefabrication production, tile
stamping, decorative material drying and linoleum production line
heat.
3. In the wood industry, it is mainly used for the hot pressing of
fiberboard, particleboard, laminate, plywood, veneer and wood
drying equipment, drying equipment, coating equipment and glue
machine heating.
4. In the fat industry, the heat transfer oil furnace is mainly
used for heating of oil, such as oil decomposition, fatty acid
distillation, lipidation, nitrification, hydrogenation reflection,
concentration, vacuum deodorization and the like.
5. In the paper industry, it is mainly used for heating of glue
roller, drying roller, drying room, drying cabinet, hot melt
machine, melting wax pot and corrugated paper processing.
6. In the fat and paint industry, it is mainly used for heating in
autoclaves, dryers, distillation irrigation, evaporation equipment,
paint drying, baking, drying and high temperature curing.
7. In the medical industry, it is mainly used for the preparation
of drugs, raw material mixing, disposition, disinfection,
distillation, evaporation, melting and other equipment and
equipment heating.
