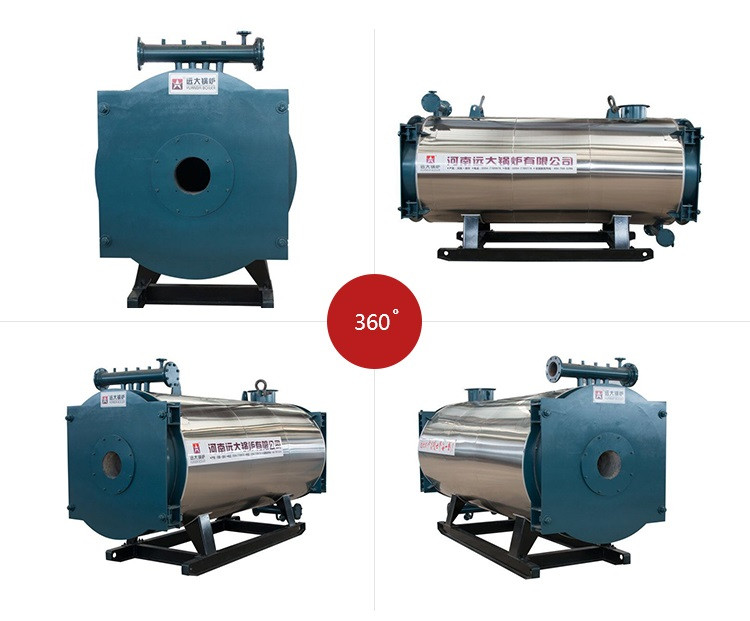

Fuel Diesel Gas Organic Heat Carrier Coil Heater Thermal Oil Boiler

Features of thermal oil boiler

1. It is fast-assembly forced circulating oil/gas fired boiler with large heating area and compact structure.

2. The heating area is formed by the closely arranged coils from the inside, middle and outside directions. The inner coil is radiation heating area. The middle and outside coils and the the inner coil surface form the convection heating area.
3. The fuel is fired and releases heat in the combustion chamber that formed by inner coils. After taking in most heat through radiation heating area, the high temperature smoke will be into the convection heating area and exchanges heat.
4. It has the four-return design with high efficiency, which can realize the comprehensive evenly heating- up with low thermal inertia.
5. The air goes into the boiler from the air inlet of the burner of the boiler’s front part, and then reaches to the back part and involves into firing through the clamp cover of between the inner and outside layer of heat-carrier boiler. In this process the air forms into four returns and finally is injected through the chimney.

Thermal oil boiler Technical Parameter

Thermal oil boiler Transportation & Delivery

1. Nude packaging for boiler main part and wood box packaging for boiler accessories.
2. Generally use 20 container, 40container or 20 flat rack container and 40 flat rack container to load the boiler.
3. All goods will be fixed after packing into containers.
4. We have stable shipping company to cooperate for long term. They will confirm the safety of the goods.
5. Shipping way is different according to customer's country. Mostly by sea. Some country by train.

Henan Yuanda Boiler Corporation

1. Founded in 1956,change name to Henan Yuanda boiler in 2007,Yuanda boiler has a 61 years history and abundant experience in China's heater energy market.
Make development on work team,Yuanda set up the R&D center for engineering technology in 2010 and R&D center for new clean energy source in 2011.

2. We have B-class boiler manufacturing license(professional for industrial boilers) and D-class pressure vessel manufacturing license, and passed ISO9001,ISO14001 and OHSAS18001.
Our own factory located in Xihua county,with cover area about 66000m2 and building area 30000 m2.There are more than 200 people working in Yuanda boiler.

3. In 2014,Yuanda boiler cooperates with famous high-tech research institutes, such as Beijing "Zhiguang" boiler institute,Harbin Institute of Technology and Xi'an Jiaotong University. Till now, we have got more than 10 boiler patents.

Henan Yuanda Boiler Co., Ltd., established in 1956, locates in Xihua county, Henan province, the central part of China. We are professional manufacturer and supplier for industrial boilers, with over 60 years' experience in boiler design, technique, production, installation and operation. Our company is one of the leading enterprises which first obtained the national boiler manufacturing license in China.

Yuanda devoted to boiler production and sales business, sell boilers at home and aboad. So far, we have sell boilers to more than 80 countries and regions,such as Pakistan, India, Sri Lanka in South Asia, Philippine, Indonisia, Malaysia, Thailand, Vietnam, Myanmar, Cambodia in South-east Asia, Saudi Arabia, UAE in Middle East, Tanzania, Egypt, Nigeria, Kenya, South Africa in Afica, Russia, Ukraine in Eruope and Mexico, Chile in South America. Our products have gained excellent reputation all over the world.

Our main products are:
(1) WNS series gas oil fired boiler
(2) DZL / DZH series coal wood fired boiler
(3) SZL series coal biomass boiler
(4) YY (Q)W series Gas oil fired thermal oil boiler
(5) YLW series coal biomass fired thermal oil boiler

(6) ZWNS series gas oil fired vacuum hot water boiler
(7) All kinds of pressure vessels

Yuanda Boiler is committed to providing industrial boilers with higher thermal efficiency, lower fuel consumption and more environmentally friendly.

We look forward to making a brilliant future with you.
