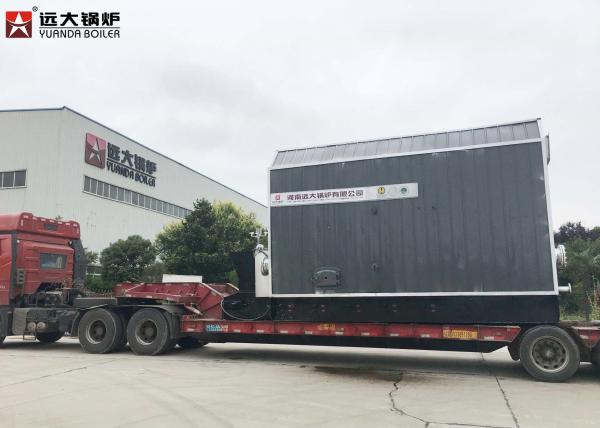

350Hp Thermal Oil Boiler Ricehusk Fired For Cardboard Factory
Thermal oil boiler introduction
1. why to use thermal oil boiler ? The hot oil boiler working
temperature can reach 250 °C above under 3bar-10bar operating
pressure. The production cost greatly reduced compared to saturated
steam boiler.
2. Hot oil boiler running medium is heat conduction oil.
3. The hot oil boiler can use coaL,biomass,wood as fuel, heat
conduction oil as medium, using hot oil circulation pump to force
the medium in liquid circulation, transfer heat to user’s heat
equipment and heat conduction oil return to the boiler to be heated
again. Achieve high working temperature under low pressure, and can
precisely control the medium running.
4. The rated power: 700 KW to 14000KW(600,000kcal to
12,000,000kcal)
5. The characteristics of the heat conduction oil: has the
performance of thermal cracking and chemical oxidation, high heat
transfer efficiency, fast heat transfer, thermal stability is good.
Fuel available
1. coal, charcoal, anthracite coal, coal powder, pulverized coal,
lignite coal, charcoal
2. wood, wood logs, wood chips, wood pellets, wood shredded, wood
residues, mixed wood, wood cuttings
3. biomass fuels, rice husk, rice hull,bagasse, straw pellets, crop
pellets, corncobs, etc.
Biomass fired thermal oil boiler advantages
1. It is easy and convenient to install the boiler, only setting
the boiler on the foundation.
2. Heating surface is formed by round coilers, sufficient
arrangement, reducing thermal load of tubes surface to ensure
safety.
3. Furnace dimensions is matching with the combustion flame,
positive pressure combustion, high radiation heat exchange
efficiency.
4. Boiler structure is compact, saving the floor area of boiler
room.
5. An air pre-heater or heat recovery boiler is placed behind the
boiler to improve the thermal efficiency.
Take technical parameter for reference
| Thermic fluid boiler model | YLW-1200MA | YLW-1400MA | YLW-2000MA | YLW-2400MA | YLW-3000MA | YLW-3500MA | YLW-4100MA |
| Thermal power(KW) | 1200 | 1400 | 2000 | 2400 | 3000 | 3500 | 4100 |
| Heat efficiency(%) | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| Design pressure(%) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
| Tmax(°C) | 320 | 320 | 320 | 320 | 320 | 320 | 320 |
| Circulation oil volume(m³/h) | 100 | 100 | 160 | 180 | 200 | 200 | 250 |
| Pipng connecting diameter(DN) | 125 | 150 | 150 | 150 | 150 | 150 | 150 |
| Total weight(kg) | 19800 | 20500 | 21500 | 24600 | 33760 | 35800 | 37500 |
Boiler application
Owing to its characteristics of high heating temperature, low
working pressure, and energy saving, the coal/biomass fired thermic
fluid heater could be widely used in a variety of industrial
production.
1. Textile industry - dyeing machine, drying rooms, high
temperature machine, resin setting machine.
2. Food industry - cooking, drying, vegetable oil refining.
3. Chemical industry - oil chemistry, polymer industry, reaction
tanks, distillation, concentration.
4. Plastics industry - plastics fired, extruded shape.
5. Rubber industry - hot press, hot extent, extrusion,
vulcanization molding, injection, etc.
6. Paper industry - drying, corrugated paper processing, calender,
glue roller.
7. Wood industry - hot processing, heat setting.
8. Machinery industry - drying, assembly processing
9.Building materials industry - plasterboard drying, asphalt
heating, emulsified asphalt, asphalt concrete, concrete component
maintenance, etc.
10. Synthetic fiber industry: polymerization, melting, spinning,
extension, dry
11. Other applications
Our service
Warranty: One-year warranty and full-life service for all of our
steam boilers
Boiler spare parts service: A full range of original spare parts
are available for all Yuanda boilers
Service before sale: Provide relative technical data for customer
choosing equipments,layout drawing,foundation,general drawing.
Service after sale: Help customer for installation and traing.
Regarding to the installation and training, the buyer should take
all the correlative charges (accommodation and food , round -trip
tickets).
Maintenance and repair for one year.
Yuanda should provide boiler technical service and operation
guidance for whole life long.
