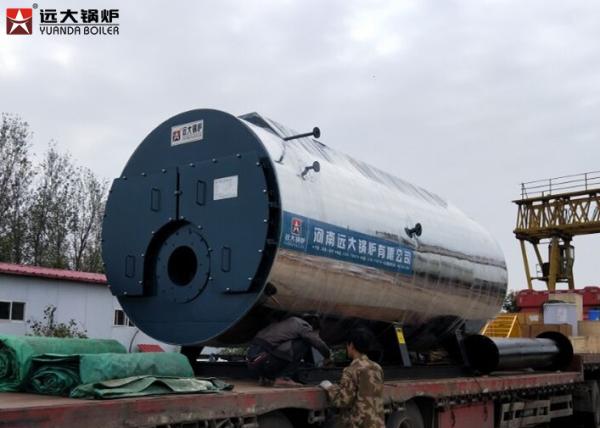

1Ton 2Ton 4Ton Oil Fired Steam Boiler For Pharmaceutical Industry
Product Introduction
0.5t-20t gas and oil steam boiler is well designed to quickly
generate clean and dry steam.
It is widely used in different industries such as chemical plant,
energy field, food factory, hospital, hotel, laundry, package
plant, paper-making mill, pharmaceutical factory, slaughter house,
tobacco factory, textiles plant, etc.
1. Model:WNS
2. Capacity: 1ton, 2ton, 4ton
3. Design pressure:1.0Mpa, 1.25Mpa, 1.6Mpa
4. Stem temperature:below 224°C
5. Design fuel: diesel oil,heavy oil
6. Structure: three pass fire tube wet back
Basic Features of WNS oil fired steam boiler
1. Double door open design about the front and rear smoke
box:elegant appearance,convenience for overhaul.Misplaced
double-deck ceramic fiber seal,loop design,repeated use.
2. Solid round steel pull rod structure design:enhance the tube
plate intensity,prevent tube plate cracking.
3. Low-dropout explosion door design:anti-explosion,reduce the
damage of the boiler
4. "sector shape" three return layout design:designed by patent
agency,extend smoke flow,strengthen heat transfer
5. "grate type" steam water separator:decrease steam
humidity,improve steam quality
6. Quick-setting high strength refractory material:strong
solidification,long use cycle,no shake off
7. Stainless cap thread embellish:antiseptic and rustproof,elegant
appearance
8. Double safety valve,double water level gauge,double pressure
gauge design:backup guarantee,safe and reliable
9. Integrated wiring device:more convenience for the wire
connection,make overhaul more simply,beautiful appearance after
installation.
Technical parameter sheet
| Boiler model | Capacity | Pressure | Feed temp. | Steam temp. | Fuel consump. | Thermal efficiency |
| Light oil | Heavy oil | Natural gas |
| t/h | Mpa | ℃ | ℃ | kg/h | kg/h | m3/h | % |
| WNS1-1.0-Y(Q) | 1 | 1 | 20 | 184 | 65.5 | 67.3 | 84.2 | 91 |
| WNS 2-1.25- Y(Q) | 2 | 1.25 | 20 | 194 | 129.6 | 132.2 | 165 | 92 |
| WNS3-1.25-Y(Q) | 3 | 1.25 | 20 | 194 | 192 | 195 | 250 | 92.1 |
| WNS4-1.25- Y(Q) | 4 | 1.25 | 20 | 194 | 256 | 261.9 | 323.6 | 93 |
| WNS5-1.25- Y(Q) | 5 | 1.25 | 20 | 194 | 318 | 322 | 386 | 93 |
| WNS6-1.25- Y(Q) | 6 | 1.25 | 20 | 194 | 380 | 390.6 | 450 | 93.2 |
| WNS8-1.25- Y(Q) | 8 | 1.25 | 105 | 194 | 503 | 517 | 642 | 93.5 |
| WNS10-1.25- Y(Q) | 10 | 1.25 | 105 | 194 | 628 | 643 | 805 | 93.5 |
Boiler application fields
1. Agriculture
2. Animal food industry
3. Automotive industry
4. Bakeries
5. Ceramic industry
6. Cheese dairies
7. Chemical industry
8. Dairies
9. Distilleries
10. Dyeing factories
11. Electrical industry
12. Food packaging industry
13. Fruit processing
14. Glass fibre production
15. Greenhouses
16. Hospitals
17. Metal-working industry
18. Paper industry
19. Pharmaceutical industry
20. Plastics manufacturing
21. Primary industry
22. Print offices
23. Refineries
