4Ton/H Wood Fired Steam Boiler Fire Wood Boiler For Plywood Factory
Wood chips is one of biomass fuel, as biomass fuel has its own
characteristic, our boiler expert specially design one furnace
structure boiler for biomass fuel burning, it can be more
efficienct, improve boiler thermal efficiency, save working cost,
also has more than 30 years working lifetime.
There are three type biomass boiler model choose
| export to Honduras | DZL8-1.25-T | DZL model boiler is a coal/biomass fired steam boiler, high quality
steam output for usage, single drum with water-fired tube
structure, Our Hoduras customer need the 8 ton/hour steam boiler
into using. This model boiler is one with chain grate, automatic
fuel feeding and running, working life can reach 25 years,
sufficient steam supply.
Biomass is the renewable energy, it's a excellent fuel to fire as
for some area where has rich biomass resource. SZL model boiler,
two drums with water tube , there is large furnace for fuel
burning, improve thermal efficiency. Biomass fuel can be wood
chips, bagasse, ricehusk, peanut shell, corncob,etc. SZL model
boiler is available to 1ton-40ton steam output per hour. |
| export to Philippines | DZL2-1.25-T |
| export to Vietnam | SZL6-1.25-T SZL4-1.25-T
|
Boiler introduction

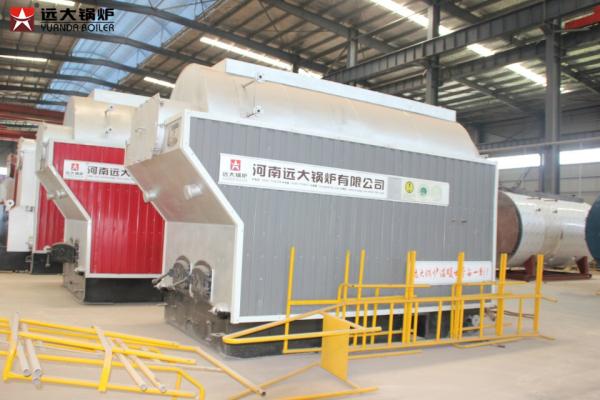

The DZL/DZH new water-fire tube boiler is a new eco-friendly and
energy-saving product co-developed by our company and famous Harbin
institute of Technology and director of Beijing Institute of Light
Boiler.
1. Boiler model:DZL/DZH
2. Boiler capacity:1-20ton/h
3.
Pressure:1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)
4. Steam temperature:184 °c,194°c, 204°c,226°c(As long as below
226°c,we can do it)
5. Fuel:coal,biomass
6. Structure:horizontal water-fire tube, single drum
7. Type:There are two types.One is DZL chain grate stoker automatic
feeding fuel and removing dregs type. Another is DZH hand operated
moving grate type which needs labour to feed fuel and remove the
dregs.
8. Application:Medicine, chemical, light industry, textile,
building material, cultivation, food and beverage, plastic foam,
printing, dyeing and washing, rubber processing, paper
products,wood processing, hotel, clothing and leather manufacturer
etc.
Boiler technical parameter ---DZH/DZL
| Boiler model | Capacity | Pressure | Feed water temp. | Steam temp. | Active grate area | Exhaust gas temp. | Design efficiency | Fuel consump. |
| t/h | Mpa | ℃ | ℃ | ㎡ | ℃ | % | Kg |
| DZH1-1.0-AII | 1 | 1 | 20 | 184 | 1.35 | 195 | 80 | 118 |
| DZH2-1.0/1.25-AII | 2 | 1/1.25 | 20 | 184/194 | 2.7 | 198 | 80 | 238 |
| DZH4-1.25/1.6-AII | 4 | 1.25/1.6 | 20 | 194/204 | 4.57 | 196 | 80 | 472 |
| DZH6-1.25/1.6-AII | 6 | 1.25/1.6 | 20 | 194/204 | 8.59 | 189 | 80 | 685 |
Only parts of boiler details parameter, for know more please feel
free to contact us.
Boiler working advantages
1. The output power remain constant, High quality of steam
2. The boiler is heating up quickly and have high heat efficiency
3. Low original dust concentration,environmental protection and
energy conservation
4. Small size appearance, low investment in boiler room
5. Low running cost, safe and reliable (safety and reliability)
6. Short installation time, low installation cost
Boiler superior design
1. Design the cyclone chamber structure in furnace,high temperature
flue gas through high - speed rotation, mixing combustion, dust
separation, and thus achieve the effect of dust removal, energy
saving and environmental protection
2. Large furnace volume,strong adaptability for coal, available for
all kinds of biomass as fuel
3. Large heating surface , boost pressure quickly, sufficient
output,low energy consumption
4. Fast assembly from factory, short installation time
