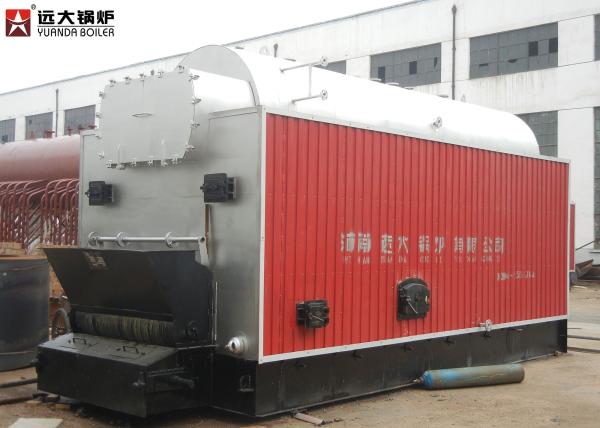

Quality Assured Wood Fired Steam Boiler Bagasse Coal Fired Boiler
1. We are factory
2. We supply list
(1) DZL coal boilers (1-35T/H, 0.7-29MW)
(2) WNS oil/gas fired boilers (0.3-20T/H, 0.35-14MN)
(3) SZL series coal/biomass boilers (2-35T/H, 1.4-29MW)
3. Features of wood fired steam boiler
(1) Wing flue
Function:cut down the smoke temperature inside the high temperature
tube plate ,so as to slow down subcooled boiling
Purpose:reduce the thermal load at the bottom of boiler,prevent
tube plate cracking ,prevent convex drum
(2) Smoke and dust separator chamber
F:Separate smoke and dust according to inertia
P:reduce the original effluent concentration of soot
(3) Optimized design CAD
F:Choose the best furnace from dozens of options
P:improve economical efficiency
(4) Convex tube plate
Function:improve tube plate flexibility,so as to reduce the heating
stress of welded sew at the pipe end
Purpose:prevent tube plate cracking, cancel bracing,simplify the
structure
(5) Large size of simple circulation loop drop pipe and lower set
box
F:Increase the flow rate of water on water cooling wall in order to
prevent subcooled boiling
P:To prevent pipe explosion,Increase the reliability of water cycle
4. FAQ
(1) Are you manufacturer?
Yes, we are grade A boiler manufacturer with 60+years history.
(2) How to get boiler price quickly?
Pls confirm :
steam boiler/ hot water boiler, capacity, pressure,output
temperature , fuel:coal/biomass/gas / oil
(3) How about your delivery time?
Generally,we have boilers in stock, it will take 10-20days after
receiving your advance payment.
(4) Do you have some videos where we can see the line producing?
Yes, we can provide some videos for reference.
(5) Do you test all your machines before delivery?
Yes, we have 100% test before delivery.
(6) How long is the product warranty period ?
A:Our product have 24 months warranty period .
(7) What is your terms of payment?
T/T 30% as deposit, and 70% before delivery.
5. DZL steam boiler parameter
| Boiler Model | Rated capacity | Rated pressure | Feed water temp. | Steam temp. | Active grate area | Design efficiency | Fuel consump | Main part weight | Main part dimensions |
| t/h | MPa | ℃ | ℃ | ㎡ | % | Kg/h | Ton | mm |
| DZL1-1.0-AII | 1 | 1 | 20 | 184 | 1.85 | 80 | 118 | 14.2 | 5488×2200×2832 |
| DZL2-1.25-AII | 2 | 1.25 | 20 | 194 | 3.4 | 80 | 238 | 23.2 | 5900×2500×3256 |
| DZL4-1.25-AII | 4 | 1.25 | 60 | 194 | 5.18 | 80 | 472 | 28 | 6829×2550×3484 |
| DZL6-1.25-AII | 6 | 1.25 | 60 | 194 | 7.55 | 80 | 685 | 47.6 | 7695×3180×4074 |
| DZL10-1.25-AII | 10 | 1.25 | 105 | 194 | 12 | 80 | 1128 | 56 | 7746×3773×3441 |
| DZL15-1.25-AII | 15 | 1.25 | 105 | 194 | 18 | 81 | 1698 | 18.8 | 8650×2300×2500 |
| DZL20-1.25-AII | 20 | 1.25 | 105 | 194 | 22.9 | 81 | 2241 | 19.1 | 8915×3373×3337 |
| DZL30-1.25-AII | 30 | 1.25 | 105 | 194 | 27.5 | 81 | 3380 | 25.6 | 7942x2440x2550 |
| DZL40-1.25-AII | 40 | 1.25 | 105 | 194 | 34.5 | 81 | 4481 | 19.68 | 9568x2036x2568 |
