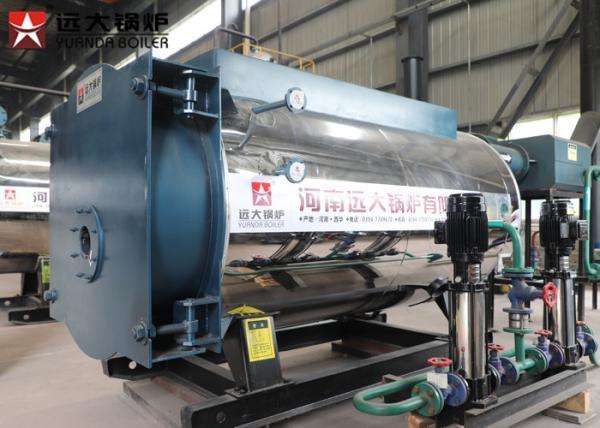

Horizontal Oil Steam Boiler Diesel Fired Package Boiler 500 Hp For
Laundry
1. Boiler introduction
WNS series gas/oil fired steam boiler is horizontal three pass fire
tube wet back full automatic steam boiler. It normally suitable for
500kg to 20ton/h capacity, use all kinds of gas and oil fuels,such
as natural gas, lpg,lng,cng,city gas,biogas, diesel oil,heavy oil.
1.WNS series oil Gas fired steam boiler realize high efficient heat
transfer, sufficient burning with brand burner, environment
protection
2.Adopted international latest technology for big volume combustion
room design, and use brand burner machine
3.Corrugated furnace design make large heat transfer area and
protect furnace
4.Using spirally corrugated tube , 1-2 faster heat transfer
efficiency and remove hidden danger of welding cracks
5.Adopted wet-back structure that can reduce faults rate and
maintenance cost
6.Equipped with protection devices for overheating, overpressure,
lacking water, leak detection, flameout etc
2. Technical parameter
| Boiler model | Capacity | Pressure | Feed temp. | Steam temp. | Fuel consump. | Thermal efficiency |
| Light oil | Heavy oil | City gas |
| t/h | Mpa | ℃ | ℃ | kg/h | kg/h | m3/h | % |
| WNS1-1.0-Y(Q) | 1 | 1 | 20 | 184 | 65.5 | 67.3 | 176 | 91 |
| WNS 2-1.25- Y(Q) | 2 | 1.25 | 20 | 194 | 129.6 | 132.2 | 346 | 92 |
| WNS3-1.25-Y(Q) | 3 | 1.25 | 20 | 194 | 192 | 195 | 510 | 92.1 |
| WNS4-1.25- Y(Q) | 4 | 1.25 | 20 | 194 | 256 | 261.9 | 682 | 93 |
| WNS5-1.25- Y(Q) | 5 | 1.25 | 20 | 194 | 318 | 322 | 87 | 93 |
| WNS6-1.25- Y(Q) | 6 | 1.25 | 20 | 194 | 380 | 390.6 | 1020 | 93.2 |
| WNS8-1.25- Y(Q) | 8 | 1.25 | 105 | 194 | 503 | 517 | 1321 | 93.5 |
| WNS10-1.25- Y(Q) | 10 | 1.25 | 105 | 194 | 628 | 643 | 1654 | 93.5 |
| WNS15-1.25- Y(Q) | 15 | 1.25 | 105 | 194 | 940 | 965 | 2417 | 93.5 |
| WNS20-1.25- Y(Q) | 20 | 1.25 | 105 | 194 | 1250 | 1301 | 3299 | 93.5 |
The listed technical parameters are for reference only and can be
designed according to different requirements of users.
3. Advantages of WNS model gas/oil fired boiler
(1) High effiency(exceed 92%) and energy saving(save gas
3-5m3/h;save oil 3-5kg/h).
(2) Enough steam output and high quality steam.
(3) Safe and reliable.
(4) Long life span(More than 20 years ).
(5) Intelligent and fully automatic.
(6) Easy inspection and maintenance.
4. Boiler application fields
1. Food Industry
Industrial steam boiler for food & beverage industry is used in the
processes of distillation, sterilization, disinfect, extraction,
drying, and curing, etc. The boiler should be clean and
environmental protection, so, it is better to use the clean energy
as the fuel, such as natural gas, biomass fuel, and electricity.
2. Brewery/Brewhouse
In brewery, steam is used for drying green malt,
gelatinizing/saccharifing raw materials, boiling wort, fermenting
beer, and pasteurizing bottles. Otherwise, hot water is also used
for sanitization. Generally, the steam boiler with 0.5ton~2ton
capacity is enough for a brewery, while, based on the production
ability, the steam capacity is a little different.
3. Sugar Mill
In sugar mill, steam plays a significant role for the processes of
heating, gelatinization, and saccharify. The temperature needed is
from about 30℃ to 80℃.There is a heating equipment under the mash
kettle, steam enter into the heating equipment and then heat the
raw material in mash kettle. Steam boiler is used for heating,
gelatinization, and saccharify, etc.
4. Textile Industry
Industrial boiler plays a significant role in the textile industry,
the steam boiler is used for different processes, such as dyeing
and drying, and support the use of resing finishing stenter, dyeing
machine, drying room, and mixing mill, etc. The needed temperature
of textile process is 60~180℃. Yuanda boiler developed a wide range
of industrial boilers that could be used for textile industry.
5. Paper Processing Industry
In paper processing industry, there are many processes (drying,
corrugating, boiling, etc.) that need steam. For example, steam is
necessary for drying, after squeezing, the paper still contain a
large amount of water (53%~70%), then steam boiler is used for
drying paper, and combine used with the cast iron dryer.
5. Boiler projects all over the world
| export to Chile | WNS2-1.0-Y(Q) |
2ton gas/oil fired steam boiler export to Chile
|
| export to Pakistan | WNS5-1.6-Y(Q) |
5ton diesel fired steam boiler export to Pakistan
|
| export to Egypt | WNS10-1.5-Y |
7MW /10ton Natural gas fired steam boiler export to Egypt
|
| export to Ghana | WNS1.5-1.0-Y |
500kg natural gas fired steam boiler will work for customer's soap
factory
|
| export to Cambodia | WNS15-1.25-Y(Q) |
Gas oil fired steam boiler is very popular, Vietnam customer uses
it for the clothes factory, Ethiopia customers uses it for food
processing factory, Bangladesh customer uses it for the milk
processing factory, African customer use it for the wood processing
factory, etc.
|
| export to Tanzanian | WNS10-1.25-Y(Q) |
| export to Saudi Arabia | WNS8-1.25-Y(Q) |
| export to New Zealand | WNS0.5-1.0-Q |
Natural gas fired steam boiler will work for honey making factory,
our New Zealand customer bought one 500kg steam boiler for food
making industry.
|
| export to Bangladesh | WNS4-1.25-Y(Q) WNS1-1.0-Y(Q) |
Fire tube steam boiler, fuel can be natural gas,lpg,cng,light oil,
heavy oil. This model boiler can be used for textile factory,very
convenient and easy-operation. Our boiler can ensure 100% running
safety and no-problem working. Some of of customer use it for food
making, like rice mill, wine factory, sauce making factory,etc.
There are many production technology process, need steam boiler to
carry out.
|
| export to Thailand | LHS0.5-0.7-Y(Q) |
LHS vertical steam boiler is a small steam output machine, the
steam generation is 0.5t per hour, fuel is natural gas, steam
pressure is 0.7Mpa, steam temperature can be reached to 184°C, and
pressure can be customized. This model boiler generally apply to
little produce process, such as a small food processing store.
|
6. Installation pictures
