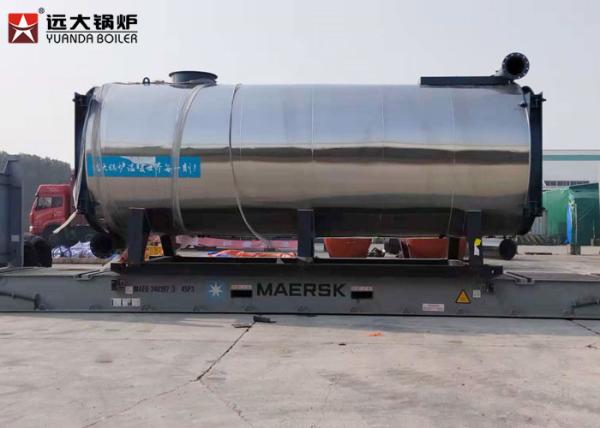

3500Kw Boiler Thermal Oil Heater Thermic Fluid Oil For Plywood Production

Introduction of thermal oil boiler

YY(Q)W series thermal oil heater boiler is quick-fitting forced circulation fuel oil(gas)boiler, this series boiler's is compact structure,the heating area is constituted by closed coil pipes from inside(or internal and external),inside coil pipes are the radiation heating surface.

1. It is fast-assembly forced circulating oil/gas fired boiler with large heating area and compact structure.
2. The heating area is formed by the closely arranged coils from the inside, middle and outside directions. The inner coil is radiation heating area. The middle and outside coils and the the inner coil surface form the convection heating area.
3. The fuel is fired and releases heat in the combustion chamber that formed by inner coils. After taking in most heat through radiation heating area, the high temperature smoke will be into the convection heating area and exchanges heat.
4. It has the four-return design with high efficiency, which can realize the comprehensive evenly heating- up with low thermal inertia.


Advantages of thermal oil boiler running

1. High efficiency & low fuel consumption & low cost & automatic work
2. High temperature heat transfer oil output for industrial process
3. Safety ensure, 2 years warranty and full life consult service
4. Automatic control system, Low operating cost, safety and reliability
5. Short installation time, low installation cost

Thermal oil heater boiler system:


Technical Date: Take 1400kw (1200,000kcal) thermal oil boiler for example

Application industries

1. Chemical industry
2. In the fat industry
3. In the food industry
4. Textile printing and dyeing industry
5. Medical industry
6. Synthetic fiber industry
7. Paper industry
8. Plastic and rubber industry
9. Wood processing industry
10. Building materials industry
11. Fat and paint industry
12. Automotive Manufacturing
13. Soap detergent industry

Customer boiler projects

Yuanda Boiler After-sale Service:

• provide full range of original spare parts.
• We will send engineers to your local project site to guide the installation and commissioning.
• Our engineers will held a training for boiler workers to ensure the safe operation.
• Free maintenance and repair for one year and lifelong service.

Henan Yuanda Boiler Co., Ltd., established in 1956, locates in Xihua county, Henan province, the central part of China. We are professional manufacturer and supplier for industrial boilers, with over 60 years' experience in boiler design, technique, production, installation and operation. Our company is one of the leading enterprises which first obtained the national boiler manufacturing license in China.

Yuanda devoted to boiler production and sales business, sell boilers at home and aboad. So far, we have sell boilers to more than 80 countries and regions,such as Pakistan, India, Sri Lanka in South Asia, Philippine, Indonisia, Malaysia, Thailand, Vietnam, Myanmar, Cambodia in South-east Asia, Saudi Arabia, UAE in Middle East, Tanzania, Egypt, Nigeria, Kenya, South Africa in Afica, Russia, Ukraine in Eruope and Mexico, Chile in South America. Our products have gained excellent reputation all over the world.

Our main products are:
(1) WNS series gas oil fired boiler
(2) DZL / DZH series coal wood fired boiler
(3) SZL series coal biomass boiler
(4) YY (Q)W series Gas oil fired thermal oil boiler
(5) YLW series coal biomass fired thermal oil boiler

(6) ZWNS series gas oil fired vacuum hot water boiler
(7) All kinds of pressure vessels

Yuanda Boiler is committed to providing industrial boilers with higher thermal efficiency, lower fuel consumption and more environmentally friendly.

We look forward to making a brilliant future with you.
