10Ton Steam Boiler Industrial Steam Boiler Gas Fired Fire Tube
Boiler
Boiler design advantages
1. Improve heat transfer technology
Apply the technology of heat transfer from “the light of Harbin
institute”.Adopt the design of efficient heat transfer screw thread
pipe and optimize the smoke speed.The output and heat efficiency of
boiler don’t decrease with the extend of operation time,thus
achieve a compact structure with 10% overload capacity.
2. Research PCL control board independently
Strontg conpability,PLC intelligent touch screen equipmet,10-inch
touch screen,fool-type operation,safe and reliable,automatic
ignition/flame-out/fire switch,high fired gas,low pressure
protection,gas leakage protection,filling and stopping pump
automatically,high and low water warning,ultra low water-level
interlock,alarm when the temperature of smoke exhaust is too high
and stop furnace operating.
3. Large load imported burner configuration
80% configuration ratio,light load drive,enough thermal energy
import,guaranteed output,reduce equipment use fatigue,extend the
service life,the quality of inlet valve group is steady and
reliable.
4. Wet back built-in transfer smoke room structure design:all wet
back structure,reduce the temperature of the tube plate,prevent
cracking.
5. “the light of boiler institute”spirally corrugated pipe
technology patent:Technology source of the light of Beijing boiler
research institute are, raise smoke flow rate,raise heat transfer
coefficient,strengthen heat transfer effect.

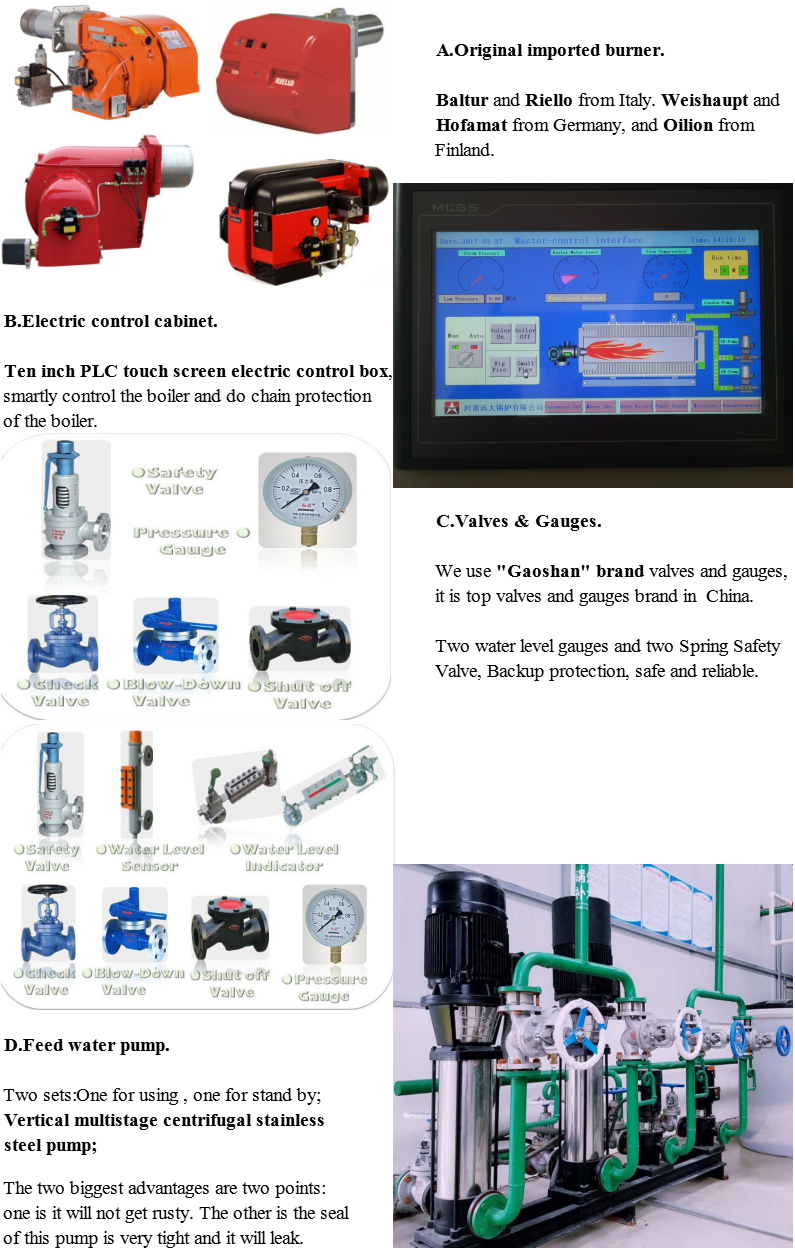

Boiler accessories
Boiler quality control system
1. Strength calculation report with applied materials information;
2. 100%NDT(non-destructive inspection) report of steel plate, tube
and welding rod;
3. 100% X-ray inspection report (welding seam): to ensure the
quality of the entire boiler;
4. Hydraulic test report: ensure the standard working pressure and
safety;
5. Third party inspection report: by Zhoukou Institute of Special
Equipment Inspection & Technical Research (China official)
