    Commercial Thermic Thermax Coal Fired Boiler CE / SGS Certification

    Ask Lasest Price
    Brand Name : Yuanda Thermal Oil Heater
    Model Number : YLW
    Certification : ISO9001,SGS,c
    Price : Price can be discussed.
    Payment Terms : D/P, T/T, L/C, D/A, Western Union
    Supply Ability : 600 set per year
    Delivery Time : 20 working days after payment
    • Product Details
    • Company Profile

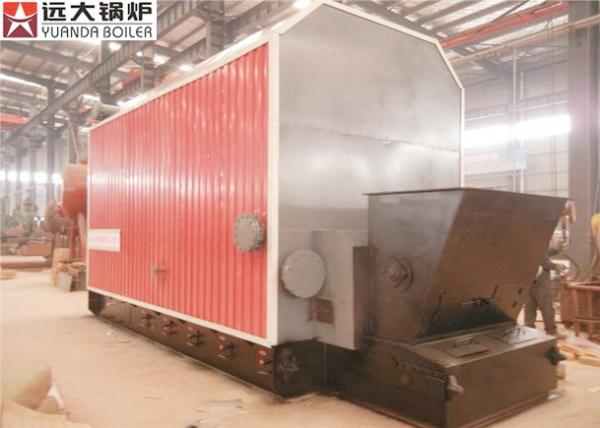

    Commercial Thermic Thermax Coal Fired Boiler CE / SGS Certification


    Commercial Thermal Oil Heater Boiler Thermic Thermax Coal Fired Boiler


    General introduction


    1. why to use hot oil boiler, thermal oil boiler: the hot oil boiler working temperature can reach 250 °C above under 0.3 ~ 1.0 MPa operating pressure. The production cost greatly reduced compared to saturated steam boiler.
    2. Hot oil boiler running medium is heat conduction oil.
    3. The hot oil boiler can use coaL,biomass,wood as fuel, heat conduction oil as medium, using hot oil circulation pump to force the medium in liquid circulation, transfer heat to user’s heat equipment and heat conduction oil return to the boiler to be heated again. Achieve high working temperature under low pressure, and can precisely control the medium running.
    4. The rated power: 700 KW to 14000KW(600,000kcal to 12,000,000kcal)
    5. The characteristics of the heat conduction oil: has the performance of thermal cracking and chemical oxidation, high heat transfer efficiency, fast heat transfer, thermal stability is good.


    Fuel available


    1. coal, charcoal, anthracite coal, coal powder, pulverized coal, lignite coal, charcoal
    2. wood, wood logs, wood chips, wood pellets, wood shredded, wood residues, mixed wood, wood cuttings
    3. biomass fuels, rice husk, rice hull,bagasse, straw pellets, crop pellets, corncobs, etc.


    Take technical parameter for reference


    Thermic fluid boiler modelYLW-1200MAYLW-1400MAYLW-2000MAYLW-2400MAYLW-3000MAYLW-3500MAYLW-4100MA
    Thermal power(KW)1200140020002400300035004100
    Heat efficiency(%)80808080808080
    Design pressure(%)1.11.11.11.11.11.11.1
    Tmax(°C)320320320320320320320
    Circulation oil volume(m³/h)100100160180200200250
    Pipng connecting diameter(DN)125150150150150150150
    Total weight(kg)19800205002150024600337603580037500

    Boiler application


    1. Refining industry
    2. Chemical industry
    3. Pharmaceutical industry
    4. Textile printing and dyeing industry
    5. Building materials industry
    6. Food industry
    7. Road asphalt heating.
