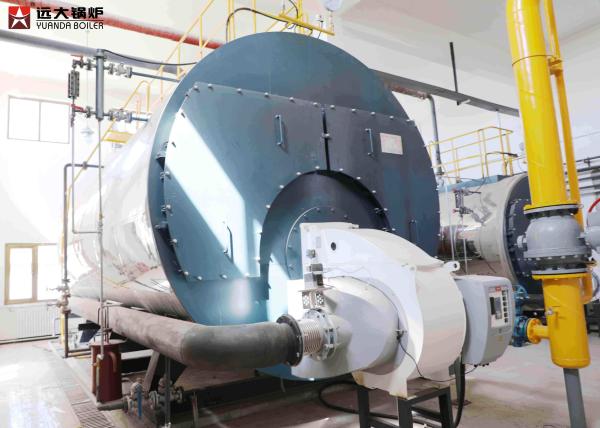

Horizontal Fire Tube Steam Boiler Oil Central Heating For Poultry
House
Advantages Feature of horizontal oil/gas steam boilers
1. Advanced design
Adopts the most sophisticaed three pass all wet back
structure,corrugated furnace and smoke tube,make sure the high
efficient and long life span of boiler
2. Siemen PLC control unit
Amuti-control function,flue gas temperature,inlet water
temperature,chamber temperature is show on one 7" colorful touch
screen
3.High efficiency 97%
With threaded pipe and high effective insulation
materails,increasing the heat transfer and improve boiler thermal
efficiency, ther boiler efficiency can reach 97% (add economizer)
4. Easy to operate and install
Customer just need to connect the pump wire,burner wire and water
level wire to the PLC control box,then the boiler can work.We will
mark on the wire to show how to install.
5. Multi-language display control system
English and Chinese is available, other language can be
customized,we will also provide detail manual book for customer to
use this boiler.
Basic features of fire tube steam boiler
| Boiler model | Rated capacity | Rated pressure | Rated Feed temp. | Rated Steam temp. | Thermal efficiency | Weight | Dimensions |
|
| t/h | Mpa | ℃ | ℃ | % | ton | mm |
| WNS1-1.0-Y(Q) | 1 | 1 | 20 | 184 | 91 | 4.3 | 3561×1690×1910 |
| WNS 2-1.25- Y(Q) | 2 | 1.25 | 20 | 194 | 92 | 7.2 | 4111×1950×2199 |
| WNS3-1.25-Y(Q) | 3 | 1.25 | 20 | 194 | 92.1 | 8 | 4330×2248×2564 |
| WNS4-1.25- Y(Q) | 4 | 1.25 | 20 | 194 | 93 | 9.6 | 4732×2150×2448 |
| WNS5-1.25- Y(Q) | 5 | 1.25 | 20 | 194 | 93 | 12.5 | 5970×2360×2796 |
| WNS6-1.25- Y(Q) | 6 | 1.25 | 20 | 194 | 93.2 | 16.5 | 5500×2600×2990 |
| WNS8-1.25- Y(Q) | 8 | 1.25 | 105 | 194 | 93.5 | 24.8 | 6450×2800×3200 |
| WNS10-1.25- Y(Q) | 10 | 1.25 | 105 | 194 | 93.5 | 26.8 | 6800×2900×3394 |
| WNS15-1.25- Y(Q) | 15 | 1.25 | 105 | 194 | 93.5 | 38 | 7150×3200×3540 |
| WNS20-1.25- Y(Q) | 20 | 1.25 | 105 | 194 | 93.5 | 55 | 8200×3400×3826 |
Boiler Packaging & Delivery
1. Packaging: Nude packaging for boiler main part and wood box
packaging for boiler accessories.
2. Shipping: Normally we use 20 container, 40container or 20 flat
rack container and 40 flat rack container to load it.Shipping way
is different according to customer's country. Mostly by sea,Some by
train.In order to ensure the customer get the product smoothly and
safely,our company has cooperated with professional transportation
team for the handing the land loading transport.
Our service
Warranty:
One-year warranty and full-life service for all of our steam
boilers
Boiler spare parts service:
A full range of original spare parts are available for all Yuanda
boilers
Service before sale:
Provide relative technical data for customer choosing
equipments,layout drawing,foundation,general grawing.
Service after sale:
Help customer for installation and traing. Regarding to the
installation and training, the buyer should take all the
correlative charges (accommodation and food , round -trip tickets).
Maintenance and repair for one year. Yuanda should provide boiler
technical service and operation guidance for whole life long.
