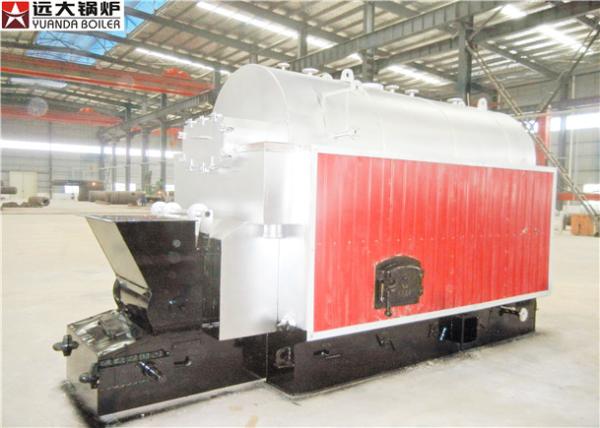

Customization Design Coal Fired Steam Boiler 3000Kg Industrial
Boiler
The DZL new water-fire tube boiler is a new eco-friendly and
energy-saving product co-developed by our company and famous Harbin
institute of Technology and director of Beijing Institute of Light
Boiler.
Special Features of DZL type
Wing flue
Function: cut down the smoke temperature inside the high
temperature tube plate ,so as to slow down subcooled boiling
Purpose: reduce the thermal load at the bottom of boiler,prevent
tube plate cracking ,prevent convex drum
Screw thread pipe
Function: strengthen heating transfer,reduce the quantity of pipe
and decrease the shell size
Purpose: save steel material,no dust,improve flexibility,prevent
tube plate cracking
New pattern of furnace arch
Function: strengthen the combustion ,strong adaptability of coal
quality
Purpose: Improve combustion efficiency
Smoke and dust separator chamber
Function: Separate smoke and dust according to inertia
Purpose: reduce the original effluent concentration of soot
Return water eject to the high temperature tube plate
Function: Improve the flow rate of high temperature tube plate and
prevent subcooled boiling
Purpose: prevent the tube plate cracking
Large size of simple circulation loop drop pipe and lower set box
Function: Increase the flow rate of water on water cooling wall in
order to prevent subcooled boiling
Purpose: To prevent pipe explosion,Increase the reliability of
water cycle
Technique Parameter Table
| Boiler Model | Rated capacity | Rated pressure | Steam temp | Exhaust gas temp. | Design efficiency | Fuel consump | Main part weight | Delivery Mode |
| t/h | MPa | ℃ | ℃ | % | Kg/h | Ton |
| DZL1-1.0-AII | 1 | 1 | 184 | 157 | 80 | 118 | 14.2 | Package |
| DZL2-1.25-AII | 2 | 1.25 | 194 | 163 | 80 | 238 | 23.2 | Package |
| DZL4-1.25-AII | 4 | 1.25 | 194 | 180 | 80 | 472 | 28 | Package |
| DZL6-1.25-AII | 6 | 1.25 | 194 | 166 | 80 | 685 | 47.6 | Package |
| DZL10-1.25-AII | 10 | 1.25 | 194 | 151 | 80 | 1128 | 56 | Assembled |
| DZL15-1.25-AII | 15 | 1.25 | 194 | 161 | 81 | 1698 | 18.8 | Assembled |
| DZL20-1.25-AII | 20 | 1.25 | 194 | 150 | 81 | 2241 | 19.1 | Assembled and Semi-Assembled |
| DZL30-1.25-AII | 30 | 1.25 | 194 | 157.6 | 81 | 3380 | 25.6 | Semi-Assembled |
| DZL40-1.25-AII | 40 | 1.25 | 194 | 162.2 | 81 | 4481 | 19.68 | Semi-Assembled |
This is just part of the product parameters, if you want to know
more detailed parameters of the boiler, please feel free to contact
us.
Boiler running advantages
1. High quality of steam
2. Strong water quality adaptability
3. The output power remain constant
4. Low running cost, safe and reliable
5. Short installation time, low installation cost
6. Small size appearance, low investment in boiler room
7. The boiler is heating up quickly and have high heat efficiency
8. Low original dust concentration,environmental protection and
energy conservation
