Compact Structure Oil Fired Hot Water Boiler For Multi Industrial
Usage
Introduction of WNS hot wate boiler for multi usage
1. Hot water boiler,gas fired boiler,automatic burning, hot water
boiler for heating
2. Gas fired ,automatic burning,automatic control
3. Fire tube,wet back,three pass construction,water adaptability is
well.
4. Horizontal type
5. Heating power 0.7mw ,(or 1.4Mw ,2.8Mw,4.2Mw,5.6Mw,7.0Mw)
6. Working Pressure 0.7Mpa ,1.0Mpa
7. Supply heating for poultry 1000m2-10000m2

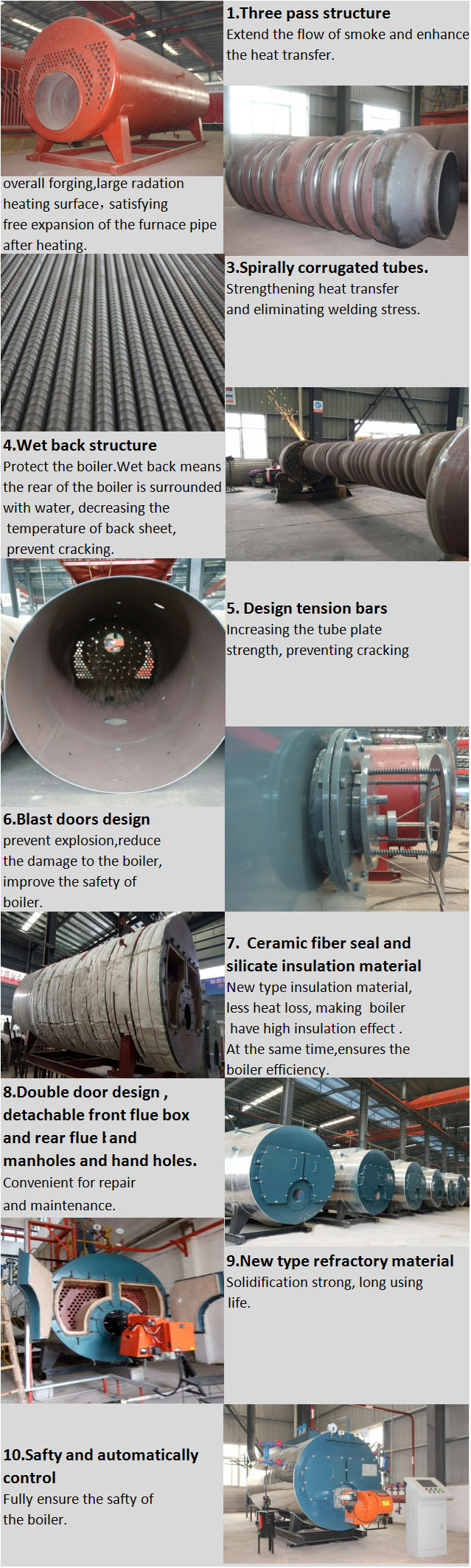

Our boiler advantages
1. Three pass structure,which extend the flow of smoke and enhance
the heat transfer.
2. Adopt bog size whole corrugated furnace,big heating area,sastify
the free expansion of boiler, improve the boiler effiency.
3. Whole adopt corrugated tubes,strengthening heat transfer and
eliminating welding stress. Other companies also use corrugated
tubes, but we adopt the latest professor “Li Zhiguang”(a very
famous boiler expert in China)technoly,the depth of the screw
thread and spacing between two screw threads are rationally
designed.
4. Our boiler design big size water volume,the steam output is
stable and steam quality is good.
5. Design special steam water separator,reduce steam humidity and
improve steam quality.
6. Whole wet back structure and transition multi-loop
full-temperature condenser design, ND just material, fin tube
design,which highly reduces the back plate sheet temperature(around
50°).
7. Double layer 12cm aluminum silicate insulation material,two
stage anti-leak design and tight seal to avoid leakage phenomenon.
8. Design tension bars,increasing the tube plate strength,
preventing cracking.
9. Explosion proof door design,prevent explosion, reduce the damage
to the boiler, improve the safety of boiler.
10. Two water level gauges and two Spring Safety Valve, Backup
protection, safe and reliable.
11. 5-10% overload capacity design and reasonally configurate spare
parts,reduce equipment fatigue.
12. New type refractory material,solidification strong, long using
life,which will not fall off after shaking.
FAQ about Yuanda boiler details
1. How can you get the best price quickly?
As soon as the hot water boiler capacity and fuel are told, we will
make the detail price list at once.
2. What about the installation?
When you receive the boiler, we will guide you to make some
preparation for installation; after that, our expert will fly to
your local place in 72 hours. The experts will responsible for
guiding installation,training, trial operation.
3. Why should you believe our quality?
(1) With 58 years rich experience in China boiler market, having
ability to provide best solution with you
(2) Ensuring boilers quality compared with the small boiler
factory, having professional >500 peoples in products,
technology development, market, QC etc
(3) With good before-sales, in-sales, after-sales service comparing
with foreign trade company, never let you worry about boiler
quality problem in running
(4) Win-win principle is our mission statement, good quality with
lower price is our rule
WNS0.7-0.7/95/70-Q(Y) technical parameter details
| Compact Structure Oil Fired Hot Water Boiler For Multi Industrial
Usage |
| Name | unit | value | remark |
| rated thermal power | mw | 0.7 | |
| rated design pressure | mpa | 0.7 | about150psi |
| outlet water temperature | C | 95 | |
| return water temperature | C | 70 | |
| water pressure test | Mpa | 1.05 | |
| boiler water capacity | m³ | 1.56 | |
| cool air temperature | C | 20 | |
| exhaust gas temperature(gas) | C | 104.6 | |
| exhaust gas temperature(oil) | C | 108.2 | |
| design efficiency(gas) | % | 92.37 | |
| design efficiency(oil) | % | 92.46 | |
| design gas consumption(gas) | nm³/h | 79.29 | 35.438MJ/kg |
| design gas consumption(oil) | nm³/h | 65.42 | 42.916MJ/kg |
| chamber radiation heating area | m² | 4.757 | |
| convection tube heating area | m² | 18.3 | |
| economizer heating area | m² | 13 | |
| full load exhaust gas density | mg/m3 | <200 | |
| gas blackness | Ringelman blackness | <1 | |
| design fuel | | natural gas(oil) | |
| boiler transfer size | mm | 3200*1420*1810 | |
| transport weight | T | 4.7 | |
This is only the technical datasheet of WNS0.7-0.7/95/70-Q(Y) hot
water boiler. For other models,please contact us for details.
